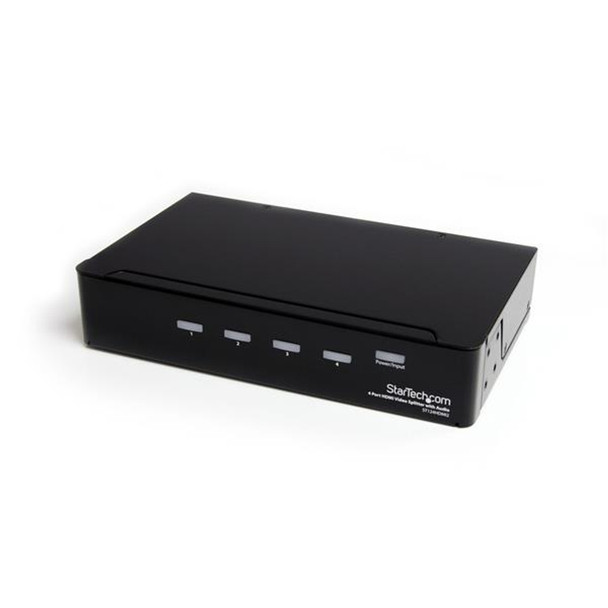

StarTech.com 4 Port HDMI 1.3 Video Splitter with Audio Black ST124HDMI2

Split an HDMI- audio and video signal to four displays simultaneouslyThe ST124HDMI2 4 Port High Speed HDMI- Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage

Features


4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; HDMI splitter with signal amplifier splits an HDMI source into four Full HD 1080p video signals with no loss of quality


EDID EMULATION: 1x4 HDMI splitter automatically passes EDID between your video source and displays native settings such as resolution and refresh rate


AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Supports HDMI audio or 3.5mm stereo audio connection, allowing you to send your accompanying audio signal through the HDMI cable, or through a separate channel


EASY SETUP: Reach up to 49ft (15m) with this HDMI splitter with signal amplifier; Simply connect the cables and power to start using; Wide screen monitor formats supported; TAA Compliant


THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with rugged steel enclosure is backed for two years, including free lifetime 24/5 multi-lingual technical assistance



Weight & dimensions


Weight

966 g


Depth

220 mm


Width
5 mm


Height

44 mm



Packaging content


Included power plug types

AU, EU, NA, UK


AC adapter included

Yes


Manual

Yes



Logistics data


Harmonized System (HS) code

85176990



Technical details


Audio support

Yes


Cascadable

Yes



Features


Supported video modes

720p, 1080p


Certification

CE, FCC, TAA, REACH


Housing material

Steel


HDCP

Yes


Product colour

Black


Supported graphics resolutions
80 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)


Maximum resolution
20 x 1200 pixels



Operational conditions


Storage temperature (T-T)

-20 - 60 -C


Operating relative humidity (H-H)

0 - 80


Operating temperature (T-T)

0 - 40 -C



Ports & interfaces


DC-in jack

Yes


Video port type

HDMI


Video ports quantity

4


Video out

4x HDMI


Audio ports quantity

5



Power


Output current

1.5 A


Input current

0.8 A


Power consumption (typical)
W


Output voltage
V


AC input voltage
0 - 240 V



Packaging data


Package weight

2 kg


Package width

411 mm


Package depth

214 mm


Package height

90 mm
