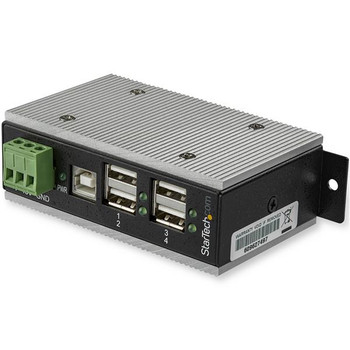

StarTech.com 4-port Industrial USB 2.0 Hub 15kV ESD Protection HB20A4AME

Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 MbpsThis TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.Perfect for Harsh EnvironmentsThis industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40C to 85C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.Connect More USB DevicesDesigned for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.Locate the Hub Where You Need It MostWith versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.Works with Older USB DevicesThe rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


4 PORT USB 2.0 HUB: Expand the connectivity of a USB Type-A computer by adding 4x USB-A high speed ports; Speeds up to 480Mbps shared across devices; Power LEDs on each port for status identification


EXTENDED TEMPERATURE RANGE: USB port expander rated for operation between -40F to 185F (-40C to 80C) w/relative humidity from 5
95% / Aluminum heat sinks on enclosure to protect from temp spikes


ESD PROTECTION: USB Hub with 15kV Air and 8kV Contact electrostatic (ESD) protection & 350W surge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments


INSTALLATION FLEXIBILITY: Ear mount & DIN rail mountable (bracket incl) for wall/desk surface locations; Incl terminal block power connector, 6.6' (2m) USB host cable; Flexible 7 to 48V DC power input


WIDE COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Works w/USB 1.1; Multi Transaction Translator (MTT) support for mixed speed devices



Weight & dimensions


Height

32 mm


Width

55 mm


Depth

95 mm


Weight

292 g



Packaging content


Cables included

USB


DIN rail kit included

Yes


Manual

Yes



Logistics data


Master (outer) case width

440 mm


Master (outer) case height

335 mm


Products per master (outer) case

25 pc(s)


Master (outer) case length

520 mm


Harmonized System (HS) code

84719000



Other features


Chipset

Genesys Logic - GL852GT



Features


Data transfer rate

480 Mbit/s


Surge protection

Yes


Product colour

Black


Housing material

Metal


Certification

CE, FCC, TAA, RoHS, REACH


LED indicators

Power


Plug and Play

Yes



Operational conditions


Operating temperature (T-T)

-40 - 85 °C


Operating relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-40 - 85 °C



Ports & interfaces


Host interface

USB 2.0 Type-B


Ports quantity

4


Hub interfaces

USB 2.0


Terminal block port

Yes


USB 2．0 ports quantity

4



Power


Input voltage

7 - 48 V


Power consumption (typical)
W


Input current

2 A



Packaging data


Package height

55 mm


Package depth

240 mm


Package width
0 mm


Package weight

504 g
