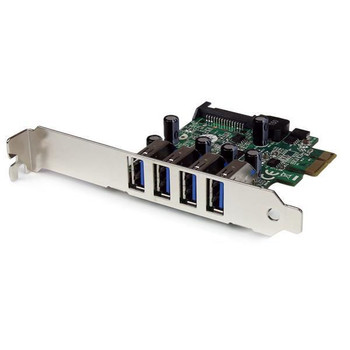

StarTech.com 4 Port PCIe SuperSpeed USB 3.0 Controller Card Adapter with SATA Po PEXUSB3S4V

Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

- USB 3.0 PCI-E card has 4 external USB 3.0 ports using a space-saving stacked layout
- Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
- Power high-powered USB devices as necessary, with the optional SATA power connector

Features


4 external USB 3.0 ports in a stacked layout


UASP support for more efficient data transfer


Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications


Built-in optional SATA power connector for bus-powered USB devices


Optionally provides up to 900mA per USB port


Backward compatible with USB 2.0 and USB 1.0/1.1 devices


Compliant with PCI Express 2.0 specifications


Includes a Low Profile/half-height installation bracket



Design


Internal

Yes


Certification

CE, FCC



Weight & dimensions


Height

75 mm


Width

68 mm


Depth

19 mm


Weight

45 g



Logistics data


Harmonized System (HS) code

84733020



Technical details


Sustainability certificates

RoHS



Other features


Mac compatibility

No


Compatible operating systems

Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)



Features


Chipset

NEC uPD720201


Data transfer rate (max)

5 Gbit/s


UASP support

Yes



Operational conditions


Operating temperature (T-T)

5 - 50 �C


Operating relative humidity (H-H)

20 - 80


Storage temperature (T-T)

-20 - 70 �C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

4


Host interface

PCIe


Internal SATA ports quantity

1


Output interface

USB 3.2 Gen 1 (3.1 Gen 1)


Expansion card standard

PCIe 2.0



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019



Packaging data


Mounting brackets included

Yes


Package height

33 mm


Package depth

132 mm


Package width

162 mm


Package weight

138 g


Manual

Yes


Drivers included

Yes
