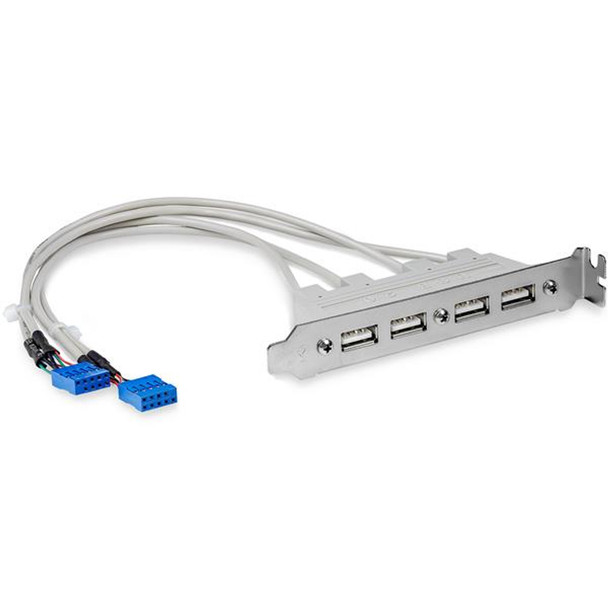

StarTech.com 4 Port USB A Female Slot Plate Adaptor USBPLATE4

Add four USB 2.0 Ports to the back of your computer

The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.

Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.

Please Note: Check your motherboard's manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground

The StarTech.com Advantage

- Supports 4 or 5 pin motherboard connections
- Guaranteed reliability

Features


USB V2.0 compliant


Supports 4 or 5 pin motherboard connections


Separate cables support a single row of 8/10 pins or 2 rows of 4/5


Four standard A-type USB outlets mounted on a plate with 11.25 inch (285.75mm) cable to the 5 pin connectors



Weight & dimensions


Weight

68 g



Sustainability


Sustainability certificates

RoHS



Certificates


Certification

CE, UL, REACH



Features


Cable length

0.286 m



Operational conditions


Operating temperature (T-T)

-5 - 40 �C


Operating relative humidity (H-H)

20 - 60


Storage temperature (T-T)

-5 - 80 �C



Packaging data


Package height

22 mm


Package depth

225 mm


Package width

125 mm


Package weight

73 g
