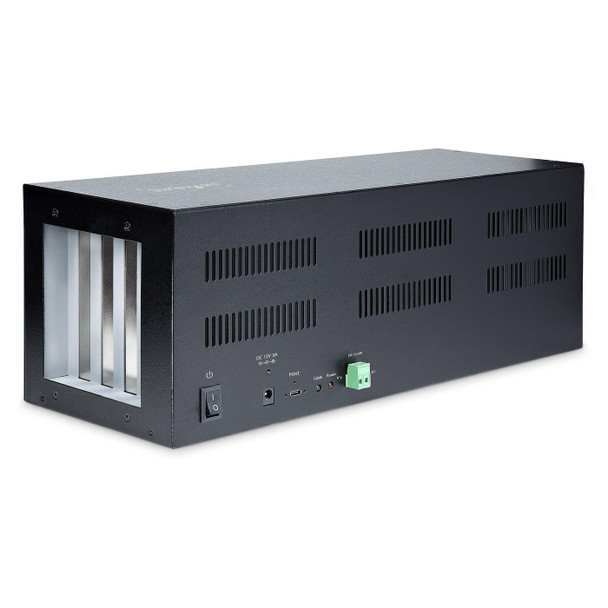

StarTech.com 4PCIE-PCIE-ENCLOSURE 4-Slot Pcie Expansion Chassis 4PCIE-PCIE-ENCLOSURE

Steel Housing | Mounting Brackets | Screw-lock USB-C CableThe robust expansion chassis supports up to 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable.External PCIe Expansion BoxThe chassis communicates with the desktop computer or server using a host card (PCIe 2.0 x2) in combination with the 5.9ft (1.8m) USB Type-C (USB-C) cable with screw-locks. The included low-profile bracket widens the compatibility as you can install the host card in small form factor (SFF) systems. Features support for PCI-E Advanced Error Reporting (AER) and EndPoint Cyclic Redundancy Check (ECRC). Both of these PCIe features to aid in establishing and maintaining PCIe connections between devices.The PCI express expansion box does not require drivers to be installed. It's operating system independent; meaning it can be used in Windows, Linux, or macOS. Note: the expansion cards installed in the chassis may require drivers.Robust ConstructionThe expansion chassis is built with SECC galvanized steel, enabling it to operate in harsh environments. It features an operating temperature range of 32� to 140�F (0� to 60�C). The vented design of the chassis allows for passive cooling and quiet operation. Secure the enclosure to the desired location using the mounting brackets and included hardware.Power OptionsPower the expansion chassis using the included 12V 3A power adapter or the terminal block port that supports 12 to 24V and 3A.ApplicationsThere are multiple application scenarios:� Upgrade or swap cards with ease.� Test hardware between multiple computers, operating systems, or with different devices/peripherals.� Maximize the I/O capabilities of the host system by installing Ethernet or fiber, USB, serial, or parallel PCIe cards.Avoid costly computer/server upgrades when more expansion slots are unavailable.The external PCIe slots for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Internal



No


Product colour



Black


Purpose



PC


Features



Chipset



ASMedia - ASM1806


Data transfer rate (max)



10 Gbit/s


Logistics data



Master (outer) case height



27 cm


Master (outer) case length



43 cm


Master (outer) case width



52 cm


Products per master (outer) case



2 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-20 - 75 �C


Other features



Material



Steel


Package dimensions



Depth (package,cm)



20 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



24 cm


Width (package,cm)



42 cm


Packaging data



Cables included



USB Type-C to USB Type-C


Mounting brackets included



Yes


Power supply included



Yes


User guide



Yes


Ports & interfaces



DC-in jack



Yes


Expansion card standard



PCIe 2.0


Host interface



USB Type-C


Host interface gender



Female


Output interface



PCIe, Terminal


PCI Express slots quantity



4


Power



External power adapter



Yes


Output current



3 A


Output voltage



12 V


Power consumption (typical)



36 Watt


Power supply input voltage



100 - 240 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
