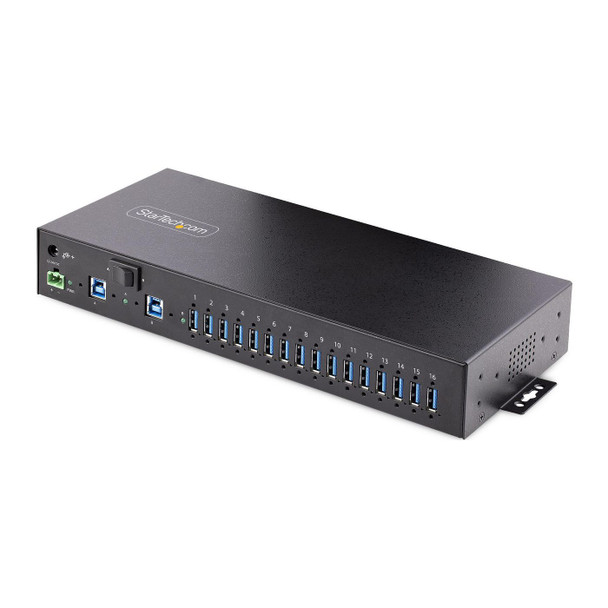

StarTech.com 5G16AINDS-USB-A-HUB 16-Port Industrial Usb 3.0 5G16AINDS-USB-A-HUB

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hubThe 16-Port Industrial USB 3.0 Hub with 5Gbps of shared bandwidth provides fast and efficient transfer speeds, making it an ideal solution for data-intensive applications. The hub features a 2-port host switch, enabling users to switch between two host devices, streamlining device management. The hub also includes ESD protection to safeguard against static electricity. Versatile mounting hardware is included for flexible installation options. Additionally, the hub supports USB BC 1.2, enabling fast charging of battery-powered USB devices. The combined features of this USB hub ensure stable and reliable functionality for use in IT and industrial applications.Engineered for Use in Industrial EnvironmentsThis USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for use in factories, production lines, and other industrial settings.Three Mounting OptionsThe 16-Port USB Hub offers three mounting options to accommodate a wide variety of applications, from IT to industrial. The 19" rackmount rails included with the 16-Port USB hub are compliant with EIA-310 standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. The built-in surface mount is perfect for workstations, desks, or walls, where users need quick access to the USB hub. The standard DIN-rail (Top Hat/TH) mounting hardware is best suited for industrial automation and control equipment.Connect and Charge USB DevicesThis USB Hub features two 12-24V DC power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.Dual-Host SwitchThe USB Hub can connect to two separate desktop or laptop computers, and features a dual-host switch that enables easy toggling between them. The dual-host switch provides a convenient solution for applications requiring two host devices.Wide Device CompatibilityThis USB Hub is OS independent ensuring compatibility with all operating systems, including Windows, macOS, and Linux.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools5G16AINDS-USB-A-HUB is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual technical support.The StarTech.com Advantage

Features



Data transfer rate



5000 Mbit/s


Housing material



Steel


LED indicators



Yes


Plug and Play



Yes


Product colour



Black


Logistics data



Master (outer) case height



31.3 cm


Master (outer) case length



39 cm


Master (outer) case width



51.5 cm


Products per master (outer) case



5 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-20 - 75 �C


Other features



Chipset



Genesys Logic - GL3523


Form factor



1U


Rack mounting



Yes


Package dimensions



Depth (package,cm)



28 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



4.3 cm


Width (package,cm)



13 cm


Packaging content



Cables included



USB Type-A to USB Type-B


DIN rail kit included



Yes


Mounting brackets included



Yes


Quick start guide



Yes


Terminal block included



Yes


Performance



Mean time between failures (MTBF)



122383.8 Hour


Ports & interfaces



DC-in jack



Yes


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Hub interfaces



USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Ports quantity



16


Terminal block port



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



16


Power



Input voltage



12 - 24 V


Power plug type



Type M


Power supply type



DC


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



1.3 cm


Product Height



4.4 cm


Product Width



3.1 cm


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
