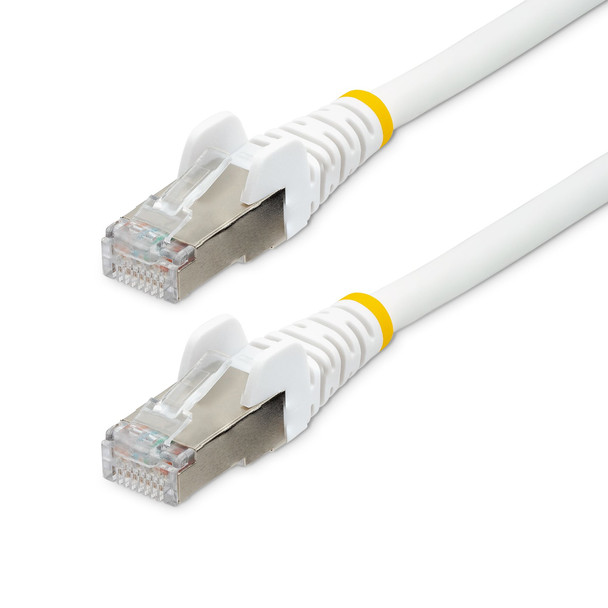

StarTech.com 5m CAT6a Ethernet Cable - White - Low Smoke Zero Halogen LSZH - 10G NLWH-5M-CAT6A-PATCH

LSZH | 10GbE | 100W PoE++ | Snagless RJ-45Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet CableLSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.100W Power over Ethernet (PoE++)This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.RJ45 Connectors with Snagless ClipsThe Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Features


CAT6A ETHERNET CABLE: High-performance Ethernet Cable for error-free 1/2.5/5/10Gbps multi-gigabit/multi-speed connections; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Tested to meet ANSI/TIA-568.2-D standards; Fluke Tested and ETL Verified


100W POWER OVER ETHERNET (PoE): Supports PoE devices up to 100W PoE++ - Complies with IEEE 802.3bt for Type 4 PoE Devices


PURE COPPER WIRING: 27 AWG 100% stranded copper wire delivers error-free data and stable PoE power, unlike the lower quality copper-clad aluminium versions of other brands, Gold-plated connector pins improve signal integrity


LOW SMOKE ZERO HALOGEN (LSZH): PVC Free cable jacket produces less dense and corrosive smoke than PVC - Braided construction resists damage from bending


SPECS: Cat 6A Network Cable - 5m - White - 10Gbps - 500 MHz - 4 Pair S/FTP - Snagless RJ-45 with Strain Reliefs - EVA, Al(OH)3 - LSZH - 27 AWG - Copper - ETL Verified - ANSI/TIA-568.2-D - Supports Cat6 and earlier standards



Weight & dimensions


Weight

174.6 g



Logistics data


Master (outer) case width

430 mm


Master (outer) case height

290 mm


Products per master (outer) case

50 pc(s)


Master (outer) case length

380 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Features


Connector shielding

Yes


Snagless cable boot

Yes


Product colour

White


Cable length

5 m


Connector 2

RJ-45


Connector 1

RJ-45


Power over Ethernet (PoE)

Yes


Connector 1 gender

Male


Connector 2 gender

Male


Cable shape

Round


AWG wire size

27


Cable shielding

S/FTP (S-STP)


Connector 1 form factor

Straight


Data transfer rate

10000 Mbit/s


Total Power over Ethernet (PoE) budget

100 W


Cable standard

Cat6a


Power over Ethernet (PoE) type supported

PoE++ (4PPoE)


Connector 2 form factor

Straight


Frequency

500 MHz


Cabling technology

10GBase-T


Jacket material

Low smoke zero halogen (LSZH)


Conductor type

Stranded


Conductor material

Copper


Plug and Play

Yes



Packaging data


Package height

30 mm


Quantity per pack

1 pc(s)


Package depth

180 mm


Package width

205 mm


Package weight

183.3 g
