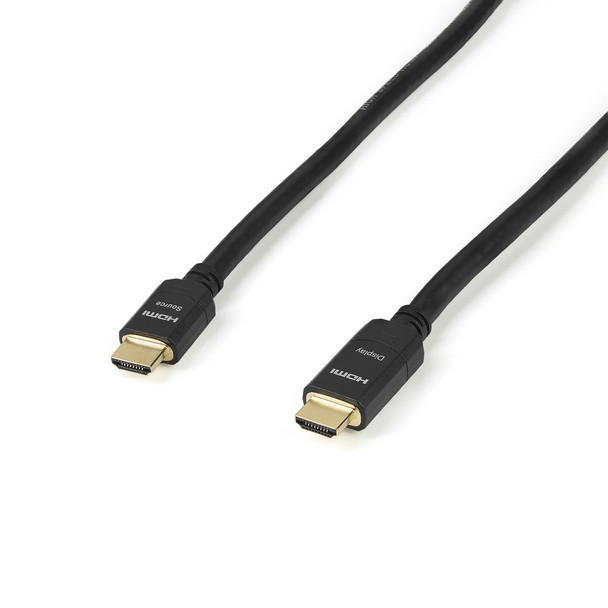

StarTech.com 66ft 20m Active HDMI Cable - 4K High Speed HDMI Cable with Ethernet HDMM20MA

Connect your HDMI devices, up to 20m away with no signal lossThis active HDMI® cable offers a connection distance of up to 65 feet (20 meters) between your HDMI enabled devices. It meets CL2 rating safety requirements, so it's ideal for in-wall cable runs in your home and office installations.Dependable connections over longer distancesThe cable features built-in amplifier circuitry which actively boosts your HDMI signal, with no external power required. It's the perfect solution for longer transmissions without any signal loss.Run in-wall cable installationsThe HDMI cable is CL2 rated for in-wall installations, which makes them perfect for A/V installations in residential or office settings. You can set up your home theatre, gaming or audio-video equipment with the cables hidden away safely inside the walls and place your devices as needed throughout your work or living space.Deliver astonishing 4k videoThis high-quality HDMI cable fully supports 1080p+ resolutions at up to 120Hz refresh rate, with life-like color. To accommodate the demands of future high-definition devices, such as increased resolutions and higher frame rates, this Ultra HD cable supports resolutions up to 4k x 2k.The HDMM20MA is backed by StarTech.com's 2-year Warranty for guaranteed reliability.Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the Source and Display labels on the HDMI connectors in order to ensure that the device and the HDMI source are connected properly.The StarTech.com Advantage

Features


HIGH SPEED HDMI CABLE: 65.6 ft (20m) Active HDMI Cable with Ethernet supports 4K Ultra HD video (3840x2160p, 24, 30Hz / 4096x2160p, 24Hz), Full HD (1080p 120Hz) / HDMI 1.4b / wide aspect ratio, 8Ch Audio (5.1/7.1/DD+/Dolby TrueHD), 3D Video


ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances to extend HDMI signal up to 65.6 ft (20m) (no external power supply needed), supports additional color spaces such as Adobe RGB and YCC601 Color


DURABLE CABLE: Ideal for in-wall installations where CL2 rating is required; Flexible PVC jacket; Al-Mylar Foil with Braid shield & gold plated connectors with metal shell improve signal integrity & block external Electromagnetic Interference (EMI)


APPLICATIONS: Use this long HDMI cable for home office, conference room, office or classroom; works w/ your laptop/professional workstation/soundbar for presentations via UHD/4K monitors, projectors/large HDTV displays; Samsung/Sony/Apple TV/Dell/Lenovo


SPECS: 65.6 feet (20 meters) / Black / HDMI 1.4b / HDMI Cord Male to Male / Jacket: PVC / Shield: Al-Mylar foil w/ Braid / CL2 Fire Rated / ARC, Deep Color, HDCP 1.4, CEC / 2-Year Warranty / Note: HDMI connector labelled "TV" connects to the display side



Weight & dimensions


Package height

82 mm


Package depth

338 mm


Package width

326 mm


Package weight

1.7 kg


Weight

1.4 kg


Cable diameter

7.5 mm



Logistics data


Master (outer) case width

348 mm


Master (outer) case height

279 mm


Products per master (outer) case

3 pc(s)


Harmonized System (HS) code

84733080


Master (outer) case length

343 mm



Technical details


Sustainability certificates

RoHS, CE



Features


Supported digital audio channels (uncompressed)

5.1, 8, 7.1


Quantity per pack

1 pc(s)


Supported graphics resolutions
20 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160


Cable length
m


Product colour

Black


Cable jacket material

Polyvinyl chloride (PVC)


Connector 2

HDMI Type A (Standard)


HDCP

Yes


Connector 1

HDMI Type A (Standard)


Connector 1 gender

Male


Connector 2 gender

Male


Dolby technologies

Dolby TrueHD, Dolby Digital Plus


HDCP version

1.4


Connector contacts plating

Gold


HDMI Ethernet channel

Yes


AWG wire size

28


Cable shielding

Aluminum mylar foil


Connector 1 form factor

Straight


3D

Yes


Connector 2 form factor

Straight


Audio Return Channel (ARC)

Yes


HDMI version

1.4b


Fire-resistance rating

CL2


Plug and Play

Yes
