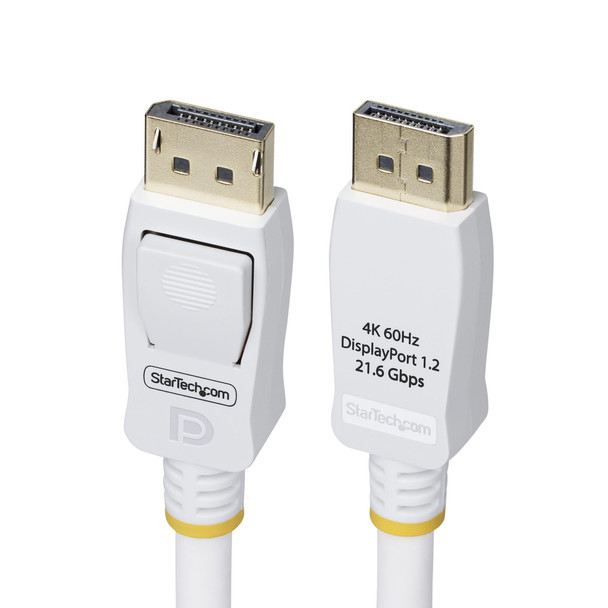

StarTech.com 6ft 1.8m White VESA Certified DisplayPort 1.2 Cable 4K 60Hz 21.6Gbp DP12-CABLE-6FTW

Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:
This DisplayPort cable supports full DP 1.2 features:
Resolutions up to 4K 60Hz using a compatible DP source and display
21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
Multi-Stream Transport (MST) for daisy-chaining multiple monitors
Up to 8 Uncompressed Digital Audio Channels
3D Stereo support for 3D video formats
Backward compatible with previous DP versions

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

The StarTech.com Advantage

Features


HIGH PERFORMANCE: DP 1.2 Cable is designed for UHD-enabled DisplayPort devices; Choose the right DP cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 21.6Gbps for seamless 4K 60Hz video


VESA CERTIFIED: DP 1.2 Cable is VESA certified for guaranteed performance and compatibility, ensuring reliable signal consistency and smooth video playback on any DP display; Backward compatible with earlier DP versions


QUALITY CONSTRUCTION: Nickel-plated latching DP connectors enable a precise fit and prevents accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant


APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a 4K docking station


SPECS: White; 6-foot (1.8-meter); VESA Certified DisplayPort 1.2; Supports HBR2/MST/HDCP 1.3; 4K 60Hz/1440p 144Hz/1080p 240Hz; 21.6Gbps; 8-ch Audio; Backward Compatible w/DP 1.1; 28AWG; 7.5mm (0.3in) O.D.



Logistics data


Master (outer) case width

500 mm


Master (outer) case height

210 mm


Products per master (outer) case

50 pc(s)


Master (outer) case length

320 mm



Features


Channels quantity

7.1 channels


Maximum resolution

4096 x 2160 pixels


DisplayPort version

1.2


Supported graphics resolutions
20 x 1080 (HD 1080), 2560 x 1440, 4096 x 2160


Cable length

1.8 m


HDCP

Yes


Connector 2

DisplayPort


Connector 1

DisplayPort


Connector contacts plating

Nickel


HDCP version

1.3


Cable shielding

Aluminum mylar foil


Cable type

Round cable


Latching connectors

Yes


Data transfer rate

21.6 Gbit/s


Number of conductors



Fire-resistance rating

VW-1


Maximum refresh rate

240 Hz


Product colour

White


Connector 1 gender

Male


Connector 2 gender

Male


AWG wire size

28


Supported video modes
80p, 1440p, 2160p


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Multi-Stream Transport (MST)

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 C


Operating relative humidity (H-H)

5 - 85


Storage temperature (T-T)

-20 - 70 C



Packaging data


Package height
mm


Package depth
0 mm


Package width

220 mm


Package weight
0 g


Weight
2 g


Cable diameter

7.5 mm
