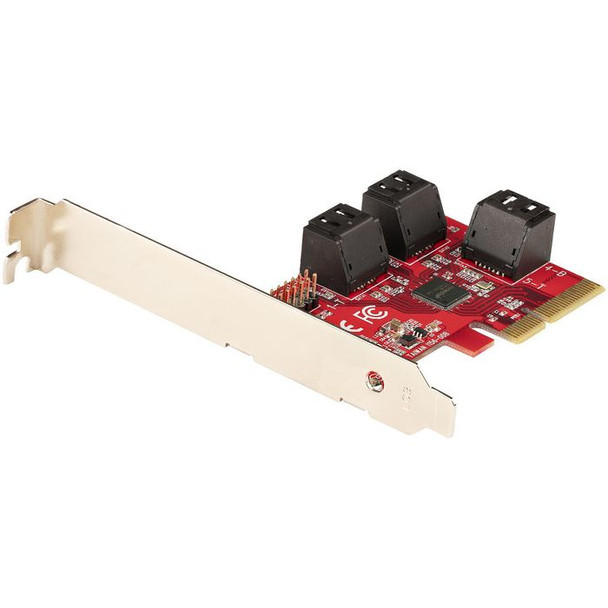

StarTech.com 6P6G-PCIE-SATA-CARD Sata Pcie Card - 6 Port Pcie 6P6G-PCIE-SATA-CARD

SATA III (6Gbps) | PCI Express 3.0 | PCIe x4 Slot | 6x SATA Connectors | 2-Year WarrantyThis 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.ASM1166 to Deliver 6-Port SATA 6Gbps PerformanceFeaturing the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

Design



Internal



Yes


Product colour



Red


Features



Chipset



ASMedia - ASM1166


Data transfer rate (max)



6 Gbit/s


S.M.A.R.T. support



Yes


TRIM support



Yes


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



50 cm


Master (outer) case length



37 cm


Master (outer) case width



50 cm


Products per master (outer) case



60 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 85 �C


Storage temperature (T-T)



-25 - 85 �C


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



14.2 cm


Packaging data



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Host interface



PCIe


Internal SATA ports quantity



6


Output interface



SATA


Port multiplier



Yes


SATA revision



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



8.2 cm


Product Height



1.6 cm


Product Width



5.4 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
