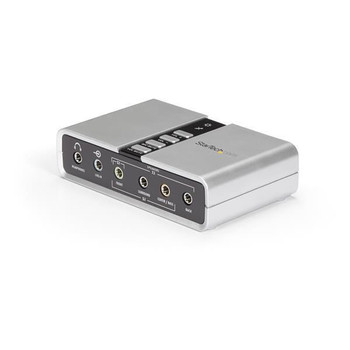

StarTech.com 7.1 USB Audio Adaptor External Sound Card ICUSBAUDIO7D

This versatile External USB Sound Card/Audio Adapter offers a high quality solution for upgrading desktop or laptop sound.

Providing a robust USB audio experience, the USB sound card connects to a host computer through a single USB 2.0 connection, to deliver impressive external audio capability that can instantly be swapped between systems, without having to open the computer case for installation.

Supporting analog and digital audio for 2 to 7.1 channel audio applications, the external USB sound card provides a cost-saving upgrade from built-in/on-board sound that turns desktop/laptop sound into a home theater-ready audio solution.

The external USB sound card features easy-to-use volume control and two external microphone inputs - a convenient solution for any audio application requiring high quality sound with multi-input capability with support for 44.1 KHz and 48 KHz sampling rates for analog playback and recording or 48 KHz for SPDIF.

A more than suitable solution for home theater, gaming or multi-media presentations, the External USB Sound Card is easy to install with plug and play support in Windows XP and Windows Vista operating systems.

Designed to deliver a long-lasting and dependable sound solution, the External USB Sound Card/Audio Adapter is backed by our 2-year warranty and free lifetime technical support.

Note: The audio adapter's SPDIF optical pass-through port supports two-channel audio, this port does not support 5.1 or 7.1 audio.

The StarTech.com Advantage
- Full 7.1 audio output support in a compact and portable external sound card
- Connect to external speakers through 3.5mm mini-jacks or optical S/PDIF
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Features


Analog and digital audio output for seven channels (7.1) of sound


Easy to install with plug and play support in Windows XP and Windows Vista


Easy volume control with volume and mute buttons on device



Weight & dimensions


Package height

32 mm


Package depth

144 mm


Package width

164 mm


Package weight

204 g


Height

25 mm


Width

60 mm


Weight

90 g


Depth

100 mm



Logistics data


Harmonized System (HS) code

84733020



Other features


Server operating systems supported

Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2


Quick start guide

Yes



Features


Cables included

USB


Chipset

C-Media CM6206


Certification

RoHS, CE, FCC, REACH


Remote control included

No


LED indicators

Activity, Power



Audio


Internal

No


Audio quality

16 bit


Digital-to-Analog Conversion (DAC)

16-bit/48kHz


Audio output channels

7.1 channels



Ports & interfaces


Microphone in

Yes


Host interface

USB


Headphone outputs

1


S/PDIF in port

Yes


S/PDIF out port

Yes


Line-in

Yes


Plug and Play

Yes
