StarTech.com 7-Port PCI Express USB 3.0 Card - Standard and Low-Profile Design PEXUSB3S7

Get the scalability you need by adding 7 USB 3.0 ports with SATA power
to your computer

Handle your workload more efficiently. This USB 3.0 card expands your computer's capabilities by giving you seven extra USB 3.0 ports. It's engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.

More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they're ready to use when you need them. It's also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design

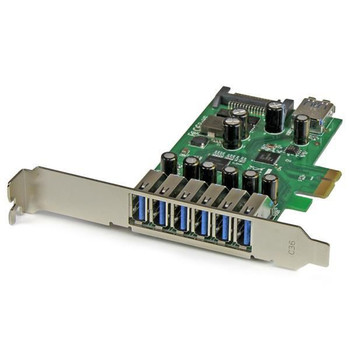

This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation

You'll be up and running in no time. The card automatically installs in Windows 8.1 or later, with native operating system support. It's also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

- Extend your system capabilities by adding 7 USB 3.0 ports - 6 external and 1 internal - to any PCIe compatible computer
- Unique dual-profile design fits standard and low-profile computers
- Enjoy fast file transfers with USB 3.0 5Gbps and UASP support

Features


Extend your system capabilities by adding 7 USB 3.0 ports - 6 external and 1 internal - to any PCIe compatible computer


Unique dual-profile design fits standard and low-profile computers


Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later


Enjoy fast file transfers with USB 3.0 5Gbps and UASP support


Backward compatible with USB 2.0 and 1.x devices


SATA power connector with up to 900mA per port for high-power USB devices


PCIe x1 interface compliant with PCI Express 2.0 specifications



Design


Mean time between failures (MTBF)

1920042 h


Internal

Yes


Product colour

Green, Metallic


Maximum cable length

3 m


Certification

CE, FCC, TAA



Weight & dimensions


Height

120 mm


Width

15 mm


Depth

105 mm


Weight

72 g



Logistics data


Harmonized System (HS) code

84733020



Technical details


Sustainability certificates

RoHS



Features


Chipset

Renesas/NEC - �PD720201, �PD720210


Data transfer rate (max)

5 Gbit/s


UASP support

Yes



Operational conditions


Operating temperature (T-T)

5 - 50 �C


Operating relative humidity (H-H)

20 - 80


Storage temperature (T-T)

-25 - 70 �C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

6


Host interface

PCIe


Internal USB 3?2 Gen 1 (3?1 Gen 1) ports quantity

1


Expansion card form factor

Full-height / Low-profile


Internal SATA ports quantity

1


Output interface

SATA, USB 3.2 Gen 1 (3.1 Gen 1)



System requirements


Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Linux operating systems supported

Yes



Packaging data


Mounting brackets included

Yes


Package height

32 mm


Package depth

176 mm


Package width

143 mm


Package weight

150 g


Manual

Yes


Drivers included

Yes
