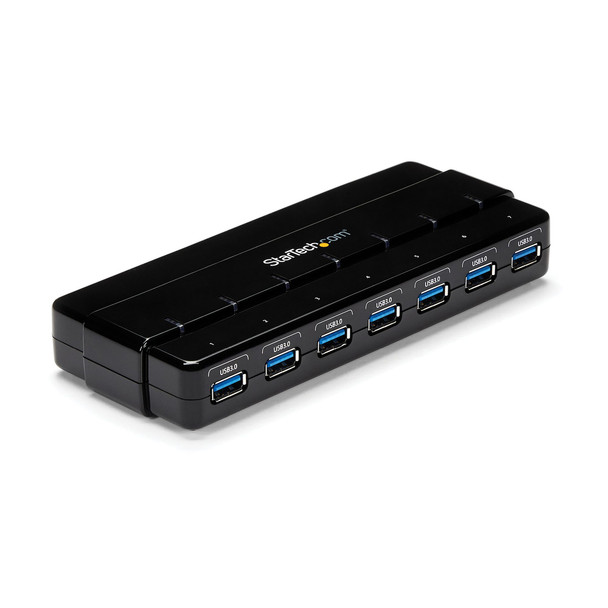

StarTech.com 7 Port SuperSpeed USB 3.0 Hub - Desktop USB Hub with Power Adaptor ST7300USB3B

Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connectionThe ST7300USB3B USB 3.2 Gen 1 Hub lets you add seven external USB 3.2 Gen 1 ports to a computer from a single USB 3.2 Gen 1 host connection.Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.2 Gen 1 specifications and is backward compatible with USB 2.0 and 1.x devices.Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


Seven downstream USB 3.2 Gen 1 ports accessible from one side of the hub, with support for up to 5Gbps


Universal, multi-platform compatibility, with no additional drivers required


Plug-and-Play and Hot-Swap compatible


Backward compatible with USB 2.0 and 1.x devices


Current overload detection and protection on each USB port


USB bus powered, includes optional external power adapter for high-power USB devices


Includes USB 3.2 Gen 1 A to B cable



Weight & dimensions


Height

23 mm


Width

70 mm


Depth

172 mm


Weight

148 g



Packaging content


Cables included

USB


Manual

Yes


AC adapter included

Yes


Included power plug types

AU, EU, NA, UK



Logistics data


Master (outer) case width

332 mm


Master (outer) case height

326 mm


Products per master (outer) case

20 pc(s)


Master (outer) case length

432 mm


Harmonized System (HS) code

84719000



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Other features


Chipset

VLI - VL812



Features


Data transfer rate

5000 Mbit/s


Product colour

Black


Housing material

Plastic


LED indicators

Yes



Operational conditions


Operating temperature (T-T)

-2 - 52 �C


Operating relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-20 - 56 �C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

7


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Ports quantity

7


Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


DC-in jack

Yes



Performance


Mean time between failures (MTBF)

43977.72 h



Power


Input voltage

100 - 240 V


AC input frequency

50 - 60 Hz


Output voltage

12 V


Power plug type

Type M


Power supply type

DC


Input current

1.3 A


Output current

3 A



Packaging data


Package height

63 mm


Package depth

209 mm


Package width

148 mm


Package weight

556 g
