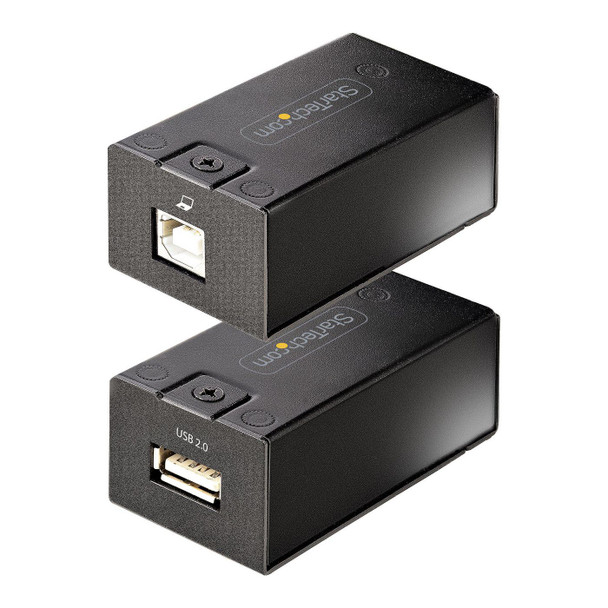

StarTech.com C15012-USB-EXTENDER 150M 492Ft Usb 2.0 Extender C15012-USB-EXTENDER

Connect a remote USB 2.0 device to your computer over long distancesExtend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.Overcome Distance LimitationsThis USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.Rugged DurabilityThe local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.Ease of UseThe USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Logistics data



Master (outer) case height



27.8 cm


Master (outer) case length



40 cm


Master (outer) case width



40 cm


Products per master (outer) case



12 pc(s)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



19.4 cm


Gross Weight (Package, kg)



1.98 kg


Height (package,cm)



6 cm


Width (package,cm)



22 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-A to USB Type-B


Ports & interfaces



DC-in jack



Yes


RJ-45 ports quantity



2


USB 2.0 Type-A ports quantity



1


USB 2.0 Type-B ports quantity



1


Power



Input current



0.6 A


Input voltage



100 - 240 V


Output current



3 A


Output voltage



5 V


Power consumption (typical)



15 Watt


Power plug type



Type H


Power source type



DC


Product dimensions



Net Weight (Product, kg)



1.52 kg


Product Depth



3.2 cm


Product Height



2.5 cm


Product Width



6.7 cm


Technical details



Cable types supported



Cat5e, Cat6


Data transfer rate



480 Mbit/s


Housing material



Metal


LED indicators



Power


Maximum transfer distance



150 m


Plug and Play



Yes


Product colour



Black


Sustainability certificates



CE, RoHS


Type



Console transmitter & receiver


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
