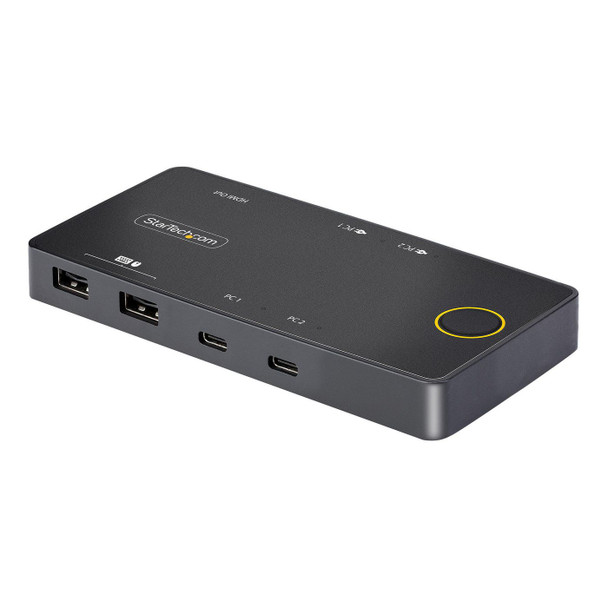

StarTech.com C2-H46-UC2-PD-KVM StarTech.com 2-Port USB-C KVM C2-H46-UC2-PD-KVM

Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selectionThis USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.100W Power Delivery Pass-throughDual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.Universal CompatibilityThe 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Ready for Quick DeploymentThe KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.The StarTech.com Advantage

Design



Cable length



1 m


Hot keys



No


Housing material



Acrylonitrile butadiene styrene (ABS)


LED indicators



Power


Mean time between failures (MTBF)



50000 Hour


Product colour



Black


Push button



Yes


Rack mounting



No


Display



Built-in display



No


Logistics data



Master (outer) case height



31 cm


Master (outer) case length



47 cm


Master (outer) case width



41 cm


Products per master (outer) case



20 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 55 °C


Storage temperature (T-T)



-20 - 50 °C


Other features



IP control



No


Package dimensions



Depth (package,cm)



17.2 cm


Gross Weight (Package, kg)



3.06 kg


Height (package,cm)



8.5 cm


Width (package,cm)



12 cm


Packaging content



Cables included



USB Type-C


Quick installation guide



Yes


Performance



Audio channels



7.1


Chipset



VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817


Data transfer rate (max)



0.48 Gbit/s


HD type



4K Ultra HD


Maximum resolution



4096 x 2160 Pixels


Plug and Play



Yes


Video bandwidth



75 Hz


Ports & interfaces



Console HDMI ports quantity



1


Console ports



HDMI, USB A, USB C


Console USB ports quantity



4


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


Video port type



HDMI


Power



Power consumption (typical)



10 Watt


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


Product dimensions



Net Weight (Product, kg)



2.35 kg


Product Depth



14 cm


Product Height



1.5 cm


Product Width



7 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
