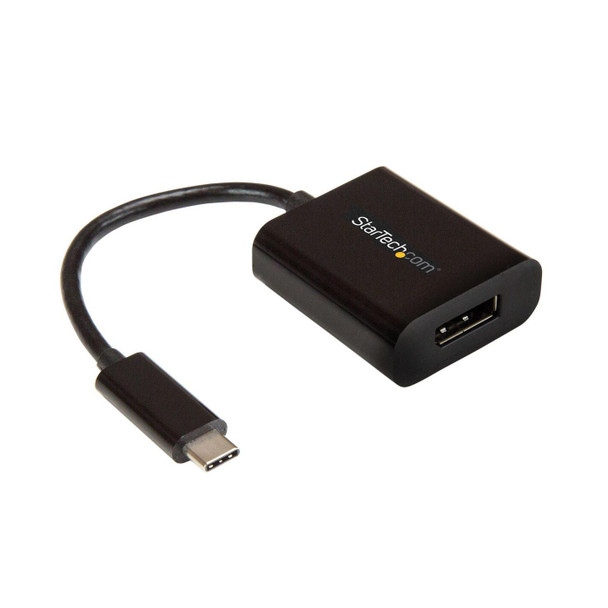

StarTech.com CDP2DP DISPLAYPORT ADAPTER USB-C CDP2DP

Connect your laptop with USB Type-C to a DisplayPort monitor or screen

This USB-C to DisplayPort adapter enables you to output DP video and audio from the USB Type-C port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort (DP) video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro. This enables you to connect your DisplayPort display to your USB-C computer using a DisplayPort cable.

Ultra HD 4K resolution at 60Hz

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, which is perfect for performing high-resolution tasks such as viewing 4K video. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.

Ultimate portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that�s easy to tuck into your laptop bag. The adapter is the perfect accessory for connecting your MacBook Pro or Dell XPS to a DisplayPort monitor or display in BYOD (Bring Your Own Device) applications at the office.

Hassle-free connection with USB Type-C

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of adjusting your device when you're trying to deliver a presentation.

The CDP2DP is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Notes:
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter

This adapter outputs a single-mode DisplayPort signal and will not work with additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or DisplayPort to DVI adapters

The StarTech.com Advantage

- Run resource-demanding applications on 4K displays at 60Hz
- Hassle-free connection with the reversible USB-C connector
- Maximum portability with a small footprint and lightweight design

Design



Integrated USB cable



Yes


Product colour



Black


USB cable length



0.14 m


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



22.2 cm


Master (outer) case length



50.4 cm


Master (outer) case width



32.7 cm


Products per master (outer) case



200 pc(s)


Package dimensions



Depth (package,cm)



19 cm


Gross Weight (Package, kg)



0.25 kg


Height (package,cm)



1.6 cm


Width (package,cm)



11.5 cm


Performance



Audio output channels



7.1 channels


Certification



CE, FCC, REACH


Chipset



PERICOM - PI3DPX1203, NXP - PTN5100


DisplayPort output



Yes


DVI output



No


HDMI output



No


Maximum resolution



3840 x 2160 Pixels


Number of displays supported



1


Refresh rate at maximum resolution



60 Hz


RoHS compliance



Yes


Supported graphics resolutions



1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160


USB connector form factor



Straight


USB connector gender



Male


USB connector type



USB Type-C


Product dimensions



Net Weight (Product, kg)



0.028 kg


Product Depth



18 cm


Product Height



1.4 cm


Product Width



3.7 cm


Technical details



Harmonized System (HS) code



84733020


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
