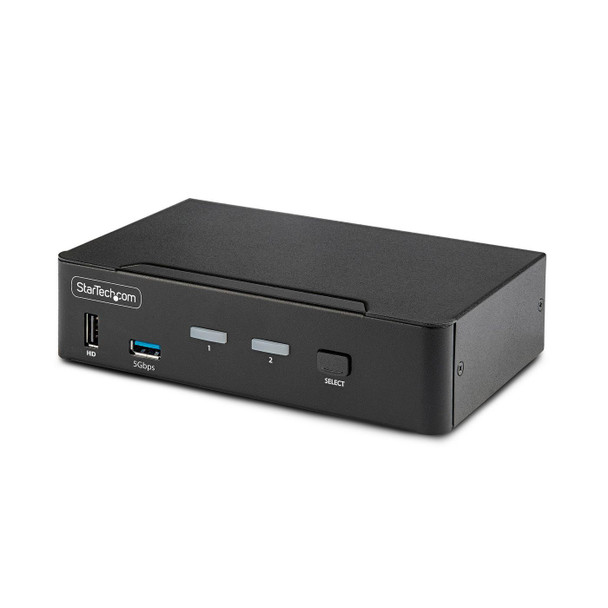

StarTech.com D86A2-2-PORT-8K-KVM StarTech.com 2-Port D86A2-2-PORT-8K-KVM

Share a mouse, keyboard and 8K 60Hz DisplayPort between two DisplayPort enabled computers, with USB 3.2 Gen 1 hub portsShare and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.High-Resolution 8K 60Hz VideoThis KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Customizable SwitchingThis Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.Universal CompatibilityThe TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.Reliable PerformanceThe durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.The StarTech.com Advantage

Design



Hot keys



Yes


Housing material



Steel


LED indicators



Y, Yes


Mean time between failures (MTBF)



130000 Hour


Product colour



Black


Push button



Yes


Rack mounting



No


Display



Built-in display



No


On Screen Display (OSD)



No


Logistics data



Master (outer) case height



30 cm


Master (outer) case length



25.7 cm


Master (outer) case width



39.7 cm


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



IP control



No


Package dimensions



Depth (package,cm)



18.4 cm


Gross Weight (Package, kg)



3.06 kg


Height (package,cm)



8.9 cm


Width (package,cm)



23.8 cm


Packaging content



Quick installation guide



Yes


Rubber feet



Yes


Performance



Chipset



GL-3523


Daisy chain



No


Data transfer rate (max)



5 Gbit/s


HD type



8K Ultra HD


HDCP



Yes


HDCP version



1.4/2.2


High Dynamic Range (HDR) supported



Yes


Maximum resolution



7680 x 4320 Pixels


Plug and Play



Yes


Scan interval



3, 8, 15, 30


Ports & interfaces



Audio connections



Yes


Console DisplayPorts ports quantity



1


Console ports



3.5mm headphone, DisplayPort, USB A


Console USB ports quantity



6


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


Headphone outputs



3


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity



2


Video port type



DisplayPort


Power



AC input voltage



100 - 240 V


Compatible power plug types



EU, JP, UK, US


Input current



1 A


Output current



3 A


Output voltage



12 V


Power consumption (typical)



36 Watt


Power source



DC


Product dimensions



Net Weight (Product, kg)



2.35 kg


Product Depth



16 cm


Product Height



4 cm


Product Width



10 cm


Sustainability



Sustainability certificates



CE, RoHS, Trade Agreements Act (TAA)


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
