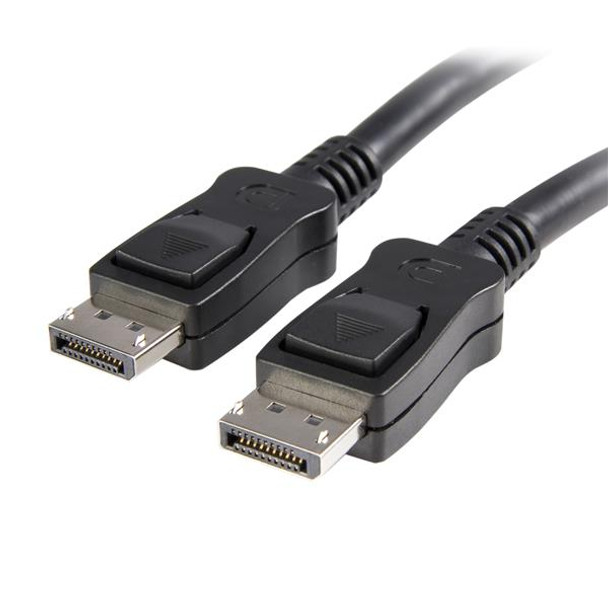

StarTech.com DISPL1M 1m DisplayPort 1.2 Cable with Latches M/M DISPL1M
- UPC:
- 0065030844208
- MPN:
- DISPL1M
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 2-3 working days)
Description
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices
High-resolution support of up to 4k x 2k
Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps
Backward compatible with DisplayPort 1.1
FULL TITLE - StarTech.com DISPL1M 1m DisplayPort 1.2 Cable with Latches M/M – DisplayPort 4k
The DISPL1M 1m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Specifications
Hardware
Cable Jacket TypePVC - Polyvinyl Chloride
Cable Shield TypeAluminum-Mylar Foil with Braid
Connector PlatingNickel
Fire RatingCMG Rated (General Purpose)
Number of Conductors19
Connector(s)
Connector A1 - DisplayPort (20 pin) Latching Male
Connector B1 - DisplayPort (20 pin) Latching Male
Physical Characteristics
Cable Length1 m [3.3 ft]
Cable OD7.3 mm [0.3 in]
ColorBlack
Connector StyleLatching
Product Length1 m [3.3 ft]
Product Weight98 g [3.5 oz]
Wire Gauge28 AWG
Packaging Information
Package Quantity1
Shipping (Package) Weight98
View AllClose
High-resolution support of up to 4k x 2k
Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps
Backward compatible with DisplayPort 1.1
FULL TITLE - StarTech.com DISPL1M 1m DisplayPort 1.2 Cable with Latches M/M – DisplayPort 4k
The DISPL1M 1m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Specifications
Hardware
Cable Jacket TypePVC - Polyvinyl Chloride
Cable Shield TypeAluminum-Mylar Foil with Braid
Connector PlatingNickel
Fire RatingCMG Rated (General Purpose)
Number of Conductors19
Connector(s)
Connector A1 - DisplayPort (20 pin) Latching Male
Connector B1 - DisplayPort (20 pin) Latching Male
Physical Characteristics
Cable Length1 m [3.3 ft]
Cable OD7.3 mm [0.3 in]
ColorBlack
Connector StyleLatching
Product Length1 m [3.3 ft]
Product Weight98 g [3.5 oz]
Wire Gauge28 AWG
Packaging Information
Package Quantity1
Shipping (Package) Weight98
