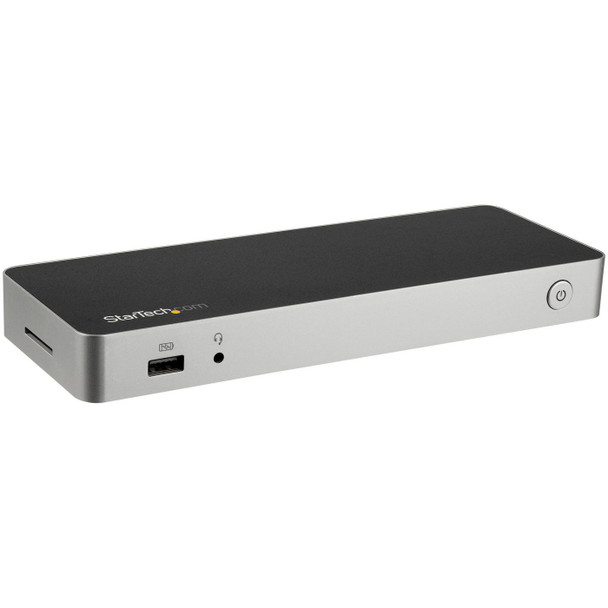

StarTech.com DK30CHDPPDUE Usb C Dock - Dual Monitor DK30CHDPPDUE

Add dual monitors (4K HDMI� & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptopThis dual-monitor USB-C� dock transforms your MacBook or Windows� laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD� card reader slot.The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It�s the perfect companion for your MacBook Pro or other Thunderbolt� 3 equipped laptop.Create a dual-4K video workstationThe USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink� and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:� 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz� 1x 4K HDMI display at 3840 x 2160 resolution @ 30HzSD� card readerThe dock provides direct access to your SD memory cards or microSD� cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.Ample connectionsThe dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and combined 3.5 mm audio and microphone port.Universal supportCompatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops. Connected Device Transparency with the StarTech.com MAC Address Changer UtilityThe DK30CHDPPDUE, includes a free Windows� application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer�s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail . The DK30CHDPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



30.2 cm


Master (outer) case length



33.5 cm


Master (outer) case width



28 cm


Products per master (outer) case



6 pc(s)


Network



Auto MDI/MDI-X



Yes


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



Cable length



1 m


Chipset



DisplayLink - DL-5700, Genesys Logic - GL3215, VIA Labs - VL813, Texas Instruments - TPS65983


Package dimensions



Depth (package,cm)



27 cm


Gross Weight (Package, kg)



0.51 kg


Height (package,cm)



9 cm


Width (package,cm)



15.5 cm


Packaging content



AC adapter included



Yes


Cables included



USB


Manual



Yes


Performance



Card reader integrated



Yes


Certification



CE, FCC, REACH


Compatible memory cards



MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC


Data transfer rate



5 Gbit/s


Housing material



Plastic


Maximum digital resolution



3840 x 2160 Pixels


Number of displays supported



2


On/off switch



Yes


Product colour



Black, Silver


UASP support



Yes


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPorts quantity



1


HDMI ports quantity



1


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB Power Delivery



Yes


USB Power Delivery up to



60 Watt


Power



AC input voltage



100 - 240 V


Compatible power plug types



EU, UK


Input current



2 A


Output current



5 A


Output voltage



20 V


Power source type



AC


Product dimensions



Net Weight (Product, kg)



0.39 kg


Product Depth



22 cm


Product Height



2.5 cm


Product Width



8 cm


Software



Mac compatibility



Yes


Mac operating systems supported



Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura


Other operating systems supported



ChromeOS


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
