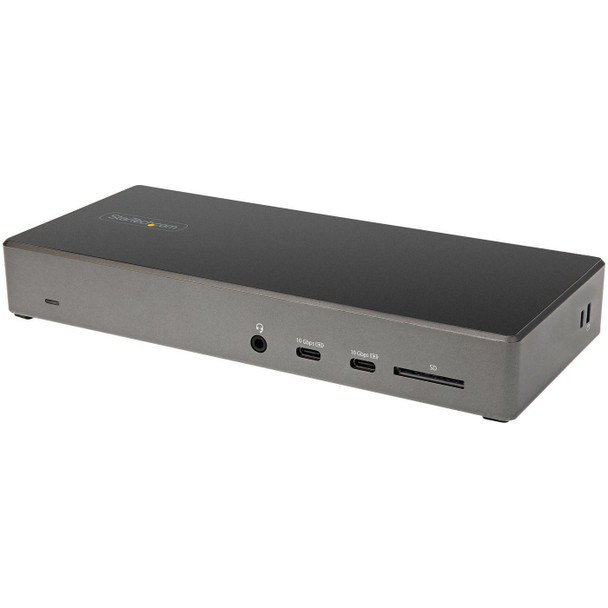

StarTech.com DK31C2DHSPDUE Usb C Dock - Triple 4K DK31C2DHSPDUE

USB Type-C Multiport Adapter | Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports

This USB-C Gen 2 10Gbps docking station?turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

HDMI & DisplayPort for Multiple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.

DP 1.4 HBR3 with DSC Enabled

DP 1.4 HBR3 (without DSC)

DP 1.2 HBR2

Triple Display

Up to 4096 x 2160 @ 30Hz

Up to 1920 x 1080 @ 60Hz

Up to 1600 x 900 @ 60Hz

Dual Display

Up to 4096 x 2160 @ 60Hz*

*HDMI port + DP port or 2 DP ports

Up to 2560 x 1440 @ 60Hz

Up to 1920 x 1080 @ 60Hz

Single Display

Up to 4096 x 2160 @ 60Hz

Up to 3840 x 2160 @ 60Hz

Up to 3840 x 2160 @ 30Hz

Power & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.

Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Integrated 6-Port USB Hub & SD Card Reader

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.

2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)

2x USB-A 3.2 Gen 1 - 5 Gbps

2x USB-A 2.0 - 480 Mbps

SD 4.0 Card Reader

Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

Additional Security Features

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK31C2DHSPDUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

The StarTech.com Advantage

- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/ChromeOS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook"

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



19.5 cm


Master (outer) case length



28.2 cm


Master (outer) case width



39 cm


Products per master (outer) case



4 pc(s)


Network



Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Networking standards



IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u


Other features



Chipset



Cypress - CYPD4236, Synaptics - VMM5320BJG-R


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



0.39 kg


Height (package,cm)



9.4 cm


Width (package,cm)



27 cm


Packaging content



AC adapter included



Yes


Cables included



USB Type-C to USB Type-C


Quick start guide



Yes


Performance



Cable lock slot



Yes


Card reader integrated



Yes


Certification



CE, FCC, RoHS


Compatible memory cards



MMC, SD


Data transfer rate



10 Gbit/s


HD type



4K Ultra HD


LED indicators



Y, Yes


Maximum digital resolution



3840 x 2160 Pixels


Maximum refresh rate



60 Hz


Number of displays supported



3


Product colour



Black, Grey


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


HDMI ports quantity



1


HDMI version



2.0


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery up to



100 Watt


Power



AC input voltage



100 - 240 V


Compatible power plug types



EU, UK


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.3 kg


Product Depth



9 cm


Product Height



3 cm


Product Width



21 cm


Software



Mobile operating systems supported



Android 10, Android 9.0, iPadOS


Other operating systems supported



ChromeOS


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
