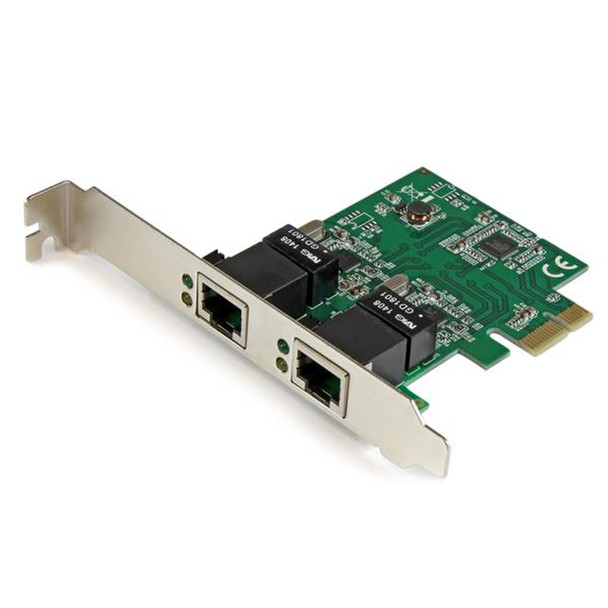

StarTech.com Dual Port Gigabit PCI Express Server Network Interface Card ST1000SPEXD4

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.

Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

The StarTech.com Advantage
- Protect critical networked systems with a redundant and independent Gigabit port
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize the networking efficiency of your virtualized server, with dedicated ports

Features


Two 10/100/1000Mbps compatible RJ-45 Ethernet ports


Up to 9K Jumbo Frame support


Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)


Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control


Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload


Wake-on-LAN / Remote Wake-up support


Configured with standard profile bracket, low profile/half-height bracket included


Supports Pair Swap / Polarity / Skew Correction



Design


Chipset

Realtek - RTL8111E, Asmedia - ASM1182E


Internal

Yes


Certification

CE, FCC


LED indicators

Activity, Link



Weight & dimensions


Height
0 mm


Width
mm


Depth

92.6 mm


Weight

51 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Wake-on-LAN ready

Yes


Auto MDIX IEEE

Yes


Jumbo frames

9000


VLAN tagging

Yes


Ethernet LAN

Yes


Maximum data transfer rate
00 Mbit/s


Full duplex

Yes


Ethernet interface type

Gigabit Ethernet


Jumbo frames support

Yes


Cabling technology
/100/1000BaseT(X)



Other features


Flow control support

Yes



Operational conditions


Operating temperature (T-T)

0 - 70 °C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

0 - 100 °C



Ports & interfaces


PCI version

2.0


Host interface

PCI Express


Ethernet LAN (RJ-45) ports

2


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Linux operating systems supported

Yes



Packaging data


Package height

30 mm


Low-profile bracket

Yes


Package depth
3 mm


Package width
0 mm


Package weight
2 g


Drivers included

Yes
