StarTech.com Dual Port PCI Express PCIe x4 Gigabit Ethernet Server Adaptor Netwo ST2000SPEXI

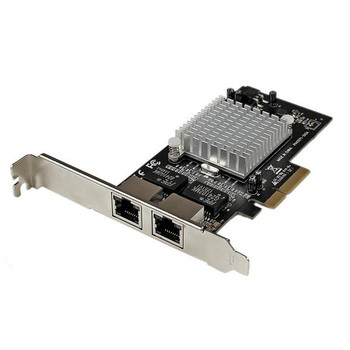

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel� I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Features


Double the network bandwidth to a single system through link aggregation / teaming support


Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging


Maximize your virtualized server networking efficiency with dedicated ports



Design


Chipset

Intel - I350-AM2


Mean time between failures (MTBF)

432400 h


Product colour

Aluminium, Black


Internal

Yes


Component for

Server


Certification

CE, FCC, REACH


LED indicators

Activity, Link



Weight & dimensions


Height

121 mm


Width

19 mm


Depth

67 mm


Weight

80 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u


Wake-on-LAN ready

Yes


Auto MDIX IEEE

Yes


LAN controller

Intel� I350-AM2


Jumbo frames

9000


VLAN tagging

Yes


Ethernet LAN

Yes


Maximum data transfer rate

2000 Mbit/s


Full duplex

Yes


Jumbo frames support

Yes


Cabling technology

10/100/1000BaseT(X)


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Link/Act LED

Yes


Power LED

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

5 - 85


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


PCI version

2.1


Host interface

PCI Express


Ethernet LAN (RJ-45) ports

2


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Linux operating systems supported

Yes



Packaging data


Package height

29 mm


Low-profile bracket

Yes


Package depth

144 mm


Package width

172 mm


Package weight

165 g


Drivers included

Yes
