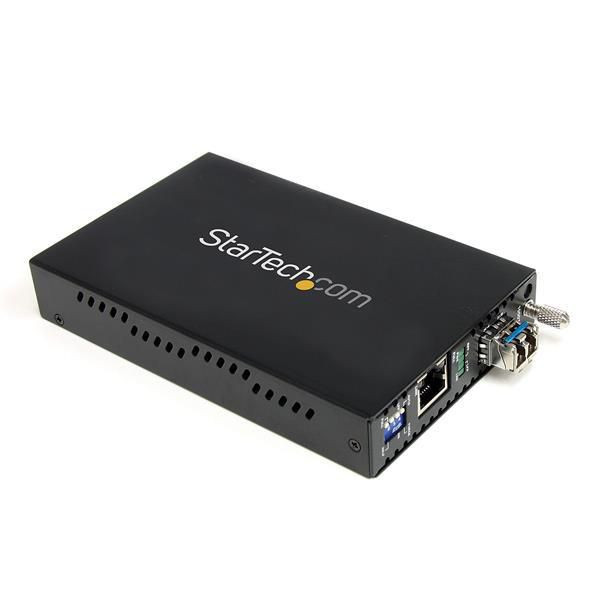

StarTech.com ET1000S40LC2 GB SM FIBER MEDIA CONVERTER LC ET1000S40LC2

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling

Design



Certification



CE, FCC


Internal



No


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Management features



Plug and Play



Yes


Network



Auto MDI/MDI-X



Yes


Converter input interface



1000Base-T


Converter output interface



1000Base-LX, 1000Base-SX


Duplex system



Full, Half


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



2000 Mbit/s


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-10 - 70 �C


Other features



Dimensions (WxDxH)



95 x 160 x 20 mm


Full duplex



Yes


Package dimensions



Depth (package,cm)



13.8 cm


Gross Weight (Package, kg)



0.754 kg


Height (package,cm)



8.9 cm


Width (package,cm)



20.5 cm


Packaging content



Manual



Yes


Performance



Fiber mode structure



Single-mode


Maximum transfer distance



40000 m


Mean time between failures (MTBF)



65000 Hour


Wavelength



1310 nm


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



LC


Fiber ports quantity



1


Power



External power adapter



Yes


Output current



1 A


Output voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
