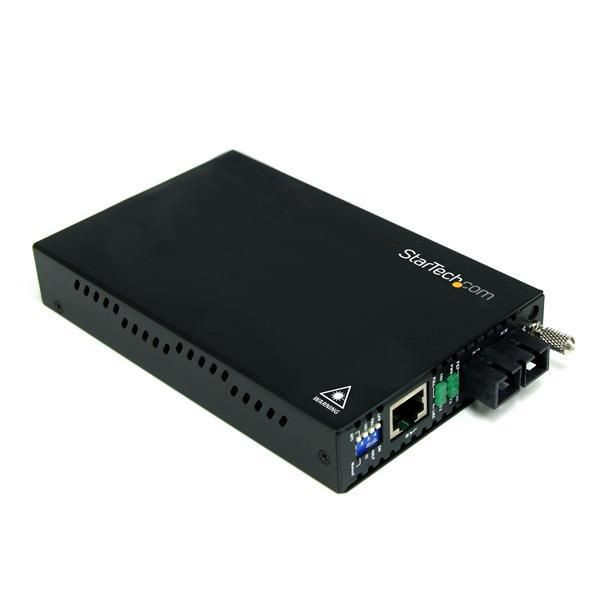

StarTech.com ET90110SC2 ETHERNET MM FIBER CONVERTER SC ET90110SC2

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Design



Certification



CE, FCC


Housing material



Steel


Internal



No


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Duplex system



Full, Half


Maximum data transfer rate



200 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u


Other features



Dimensions (WxDxH)



95 x 160 x 20 mm


Full duplex



Yes


Package dimensions



Depth (package,cm)



23.3 cm


Gross Weight (Package, kg)



0.779 kg


Height (package,cm)



7.7 cm


Width (package,cm)



19 cm


Packaging content



AC adapter included



Yes


Manual



Yes


Performance



Fiber mode structure



Multi-mode


Maximum transfer distance



2000 m


Wavelength



1310 nm


Wavelength-division multiplexing (WDM)



No


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



1


Power



Input voltage



100 - 240 V


Output current



1.6 A


Output voltage



12 V


Power over Ethernet (PoE)



No


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.19 kg


Product Depth



15.3 cm


Product Height



2.4 cm


Product Width



8.7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
