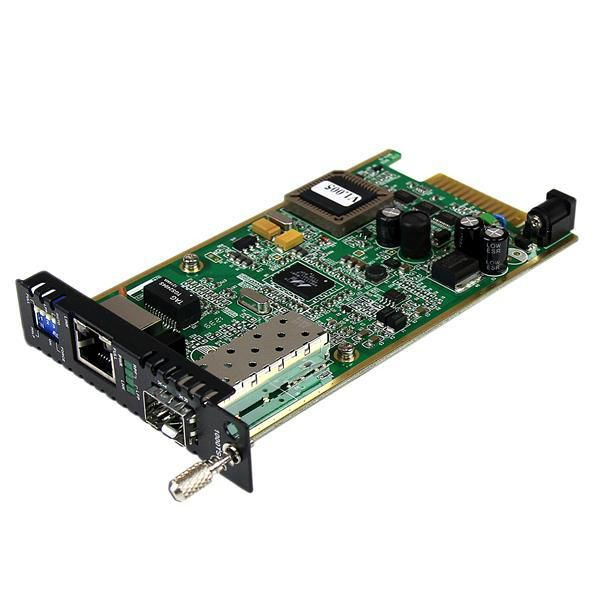

StarTech.com ET91000SFP2C GB FIBER MEDIA CONVERTER CARD ET91000SFP2C

Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice

The ET91000SFP2C Open SFP Fiber Media Converter card module converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.

A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).

Designed for applications where multiple chassis-powered media converters are required, this Gigabit media converter ships as a card module that can easily be installed into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For standalone operation this Gigabit media converter can also be purchased as a standard ET91000SFP2" text="Open SFP Media Converter (ET91000SFP2).

The fiber to Ethernet converter offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install the SFP of your choice with the open SFP slot
- Easily set up a full rack mount chassis of media converters with the card module design
- Ensure maximum up-time with link-loss forwarding and remote status monitoring

Design



Certification



FCC


Internal



Yes


LED indicators



Y, Yes


Product colour



Black, Green


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Converter input interface



1000Base-T


Converter output interface



1000Base-LX, 1000Base-SX


Duplex system



Full, Half


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



1000


Maximum data transfer rate



1250 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 60 °C


Storage temperature (T-T)



-10 - 70 °C


Package dimensions



Depth (package,cm)



18.5 cm


Gross Weight (Package, kg)



0.184 kg


Height (package,cm)



2.7 cm


Width (package,cm)



13 cm


Packaging content



Manual



Yes


Performance



Mean time between failures (MTBF)



65000 Hour


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



External power adapter



No


Input current



1 A


Input voltage



12 V


Power consumption (typical)



8 Watt


Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.05 kg


Product Depth



14 cm


Product Height



2 cm


Product Width



7.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
