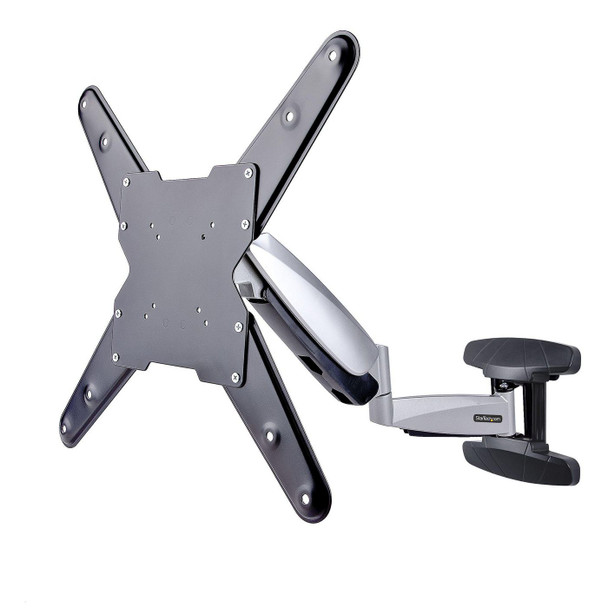

StarTech.com FHA-TV-WALL-MOUNT VESA TV WALL MOUNT FULL MOTION FHA-TV-WALL-MOUNT

Mounting Hardware Included | One-touch Adjustments | Digital SignageThe steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.Versatile TV MountingSecurely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.Full-Motion AdjustmentThe VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.Durable ConstructionThe robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Anti-theft function



No


Housing material



Aluminium, Steel


Product colour



Black, Silver


Ergonomics



Angle of rotation



3 °


Cable management



Yes


Distance to the wall (max)



59.5 cm


Distance to the wall (min)



5.8 cm


Height adjustment



Yes


Rotating



Yes


Swivel angle



180 °


Tilt angle range



-15 - 8 °


Logistics data



Master (outer) case height



30.5 cm


Master (outer) case length



46 cm


Master (outer) case width



60.5 cm


Products per master (outer) case



1 pc(s)


Mounting



Maximum screen size



55 "


Maximum VESA mount



400 x 400 mm


Maximum weight capacity



30 kg


Minimum screen size



23 "


Minimum VESA mount



75 x 75 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 200, 400 x 400


Package dimensions



Depth (package,cm)



44 cm


Gross Weight (Package, kg)



6.91 kg


Height (package,cm)



9.5 cm


Width (package,cm)



58.5 cm


Packaging content



Manual



Yes


Mounting plate included



Yes


Number of screws



33


Number of spacers included



16


Number of washers included



13


Screws included



Yes


Wrench included



Yes


Wrench type



Hexagonal wrench


Product dimensions



Net Weight (Product, kg)



6.1 kg


Product Depth



0.63 cm


Product Height



0.1 cm


Product Width



0.5 cm


Technical details



VESA mount included



Yes


Vendor information



Brand Name


StarTech.com
