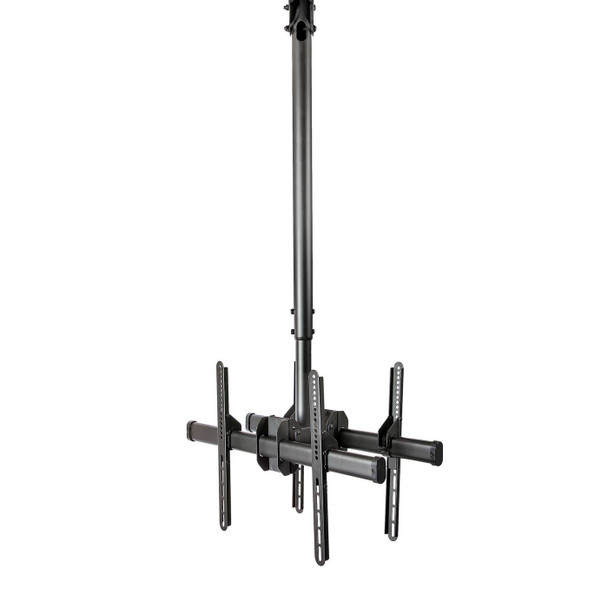

StarTech.com FPCEILBTB CEILING TV MOUNT BACK-TO-BACK FPCEILBTB

Dual Display Mount | Full Motion | For 32" to 75" Displays

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

Back-to-Back TV Mount

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

Adjustable Height

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

Easy Screen Adjustment

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

Swivels to Suit Your Ceiling

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

Simple Setup and Cable Management

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole (3.5' to 5' from ceiling)
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360� around the telescopic pole, and individually rotated +/-3� & tilted +5/-20�; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level

Design



Anti-theft function



No


Housing material



Steel


Product colour



Black


Ergonomics



Adjustable



Yes


Angle of rotation



360 �


Height adjustment



Yes


Height adjustment range



1060 - 1560 mm


Swivel angle range



-180 - 180 �


Tilt angle range



-20 - 5 �


Logistics data



Harmonized System (HS) code



85299097


Master (outer) case height



31 cm


Master (outer) case length



96.5 cm


Master (outer) case width



34 cm


Products per master (outer) case



2 pc(s)


Mounting



Maximum screen size



75 "


Maximum VESA mount



600 x 400 mm


Maximum weight capacity



90 kg


Maximum weight capacity (per display)



45 kg


Minimum screen size



32 "


Minimum VESA mount



200 x 200 mm


Mounting type



Ceiling


Number of displays supported



2


Panel mounting interface



200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400


Package dimensions



Depth (package,cm)



93.5 cm


Gross Weight (Package, kg)



10.87 kg


Height (package,cm)



14.5 cm


Width (package,cm)



31 cm


Packaging content



Manual



Yes


Number of nuts



2


Number of screws



46


Number of spacers included



32


Number of washers included



12


Nuts included



Yes


Screws included



Yes


Spacer included



Yes


Washers included



Yes


Wrench included



Yes


Product dimensions



Net Weight (Product, kg)



10.8 kg


Product Depth



0.94 cm


Product Height



0.15 cm


Product Width



0.32 cm


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Weight & dimensions



Depth (max)



68 cm
