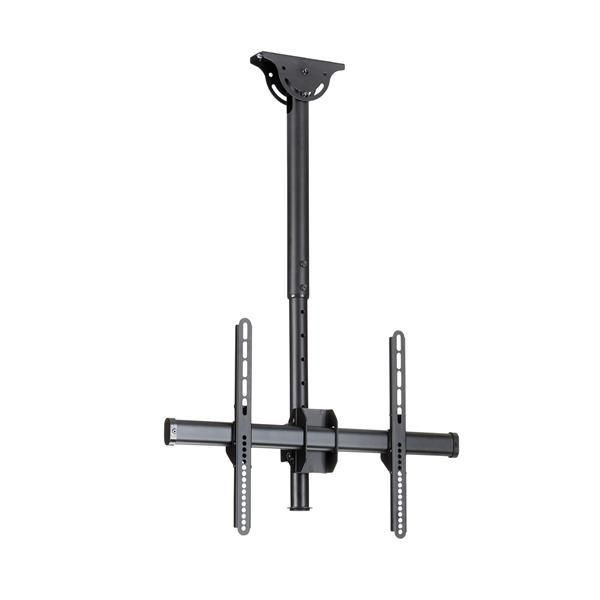

StarTech.com FPCEILPTBSP CEILING TV MOUNT - STEEL FPCEILPTBSP

Display Ceiling Mount | Full Motion | For 32" to 75" Displays

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Save space by suspending your 32 to 75" flat-screen TV from the ceiling; Supports TVs up to 110lb (50 kg)
- Min-max pole length extension of 22.0" to 35.8" (560 to 910 mm)
- Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings

Design



Anti-theft function



No


Certification



REACH, CE


Housing material



Steel


Product colour



Black


Ergonomics



Angle of rotation



360 �


Cable management



Yes


Height adjustment



Yes


Height adjustment range



560 - 910 mm


Pivot angle



-180 - 180 �


Swivel angle range



-180 - 180 �


Tilt angle range



-25 - 0 �


Logistics data



Harmonized System (HS) code



85299097


Master (outer) case height



39.5 cm


Master (outer) case length



45.8 cm


Master (outer) case width



78.9 cm


Products per master (outer) case



3 pc(s)


Mounting



Maximum screen size



75 "


Maximum VESA mount



600 x 400 mm


Maximum weight capacity



50 kg


Minimum screen size



37 "


Minimum VESA mount



200 x 200 mm


Mounting type



Ceiling


Number of displays supported



1


Panel mounting interface



200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400


Package dimensions



Depth (package,cm)



36.6 cm


Gross Weight (Package, kg)



6.8 kg


Height (package,cm)



14.9 cm


Width (package,cm)



77.1 cm


Packaging content



Manual



Yes


Mounting kit



Yes


Number of screws



24


Number of spacers included



8


Number of washers included



8


Screws included



Yes


Spacer included



Yes


Washers included



Yes


Wrench included



Yes


Product dimensions



Net Weight (Product, kg)



4.9 kg


Product Depth



68 cm


Product Height



115 cm


Product Width



68 cm


Technical details



Package dimensions (WxDxH)



366 x 771 x 149 mm


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Depth (max)



43.5 cm
