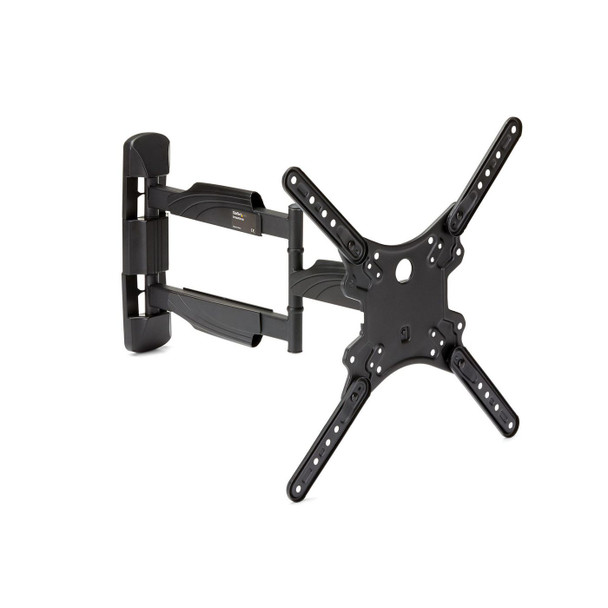

StarTech.com FPWARTB1M TV MOUNT F. WALL STEEL FPWARTB1M

Display Wall Mount | Steel | For 32" to 55" Displays

Maximize space while creating an impressive display. This full-motion TV wall mount, made of heavy-duty steel, securely supports flat-screen TVs from 32" to 55". The arm extends easily to provide smooth, full-motion positioning for ideal viewing.

Mount Your Monitor to Save Valuable Space

Mount your flat-screen TV in a location that's convenient for visitors, clients and employees. This TV wall mount is ideal for the lobby, boardroom or other venues, providing an impressive and secure way to display a flat-panel TV or mount digital signage. It also frees up valuable space. The TV wall mount supports most 32" to 55" (558.8 to 1397 mm) LED or LCD flat panel TVs weighing up to 77 lb. (35 kg).

Full-Motion Adjustment

The TV wall mount provides full-motion adjustment capability. The arm extends up to 19.8" (503 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arm can also fold to tuck-in closely to the wall, providing a minimized profile, which enables you to position your display just 1.9" (49 mm) from the wall.

The TV wall mount swivels +90 / -90 degrees to provide maximum viewing flexibility. The mount also tilts +2 / -12 degrees, letting you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably.

Heavy-Duty Construction

The robust steel design safely and securely supports your flat-screen TV, to protect your investment. The TV wall mount also includes plastic brackets for cable management to keep cables neatly out of sight.

The FPWARTB1M is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 55" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 55 inch (77 lb/35 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90� swivel, +2/-12� tilting & +/-5� LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDABLE ARM: Arm can extend from 1.9" (49mm) to 19.8" (503mm) from the wall; With the length of the arm, center of the display has an overall lateral range (left to right) of 39.6" (1006mm)

Design



Anti-theft function



No


Housing material



Steel


Product colour



Black


Ergonomics



Built-in spirit level



Yes


Cable management



Yes


Distance to the wall (max)



50.3 cm


Distance to the wall (min)



4.9 cm


Swivel angle range



-90 - 90 �


Tilt angle range



-12 - 2 �


Logistics data



Harmonized System (HS) code



85299097


Master (outer) case height



31.1 cm


Master (outer) case length



42 cm


Master (outer) case width



34.8 cm


Products per master (outer) case



6 pc(s)


Mounting



Maximum screen size



55 "


Maximum VESA mount



400 x 400 mm


Maximum weight capacity



35 kg


Minimum screen size



22 "


Minimum VESA mount



100 x 100 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300


Package dimensions



Depth (package,cm)



39.5 cm


Gross Weight (Package, kg)



3.5 kg


Height (package,cm)



5 cm


Width (package,cm)



32.3 cm


Packaging content



Adapter bracket included



Yes


Manual



Yes


Mounting kit



Yes


Number of adapter brackets included



4


Number of screws



32


Number of spacers included



16


Number of washers included



12


Screws included



Yes


Spacer included



Yes


Washers included



Yes


Wrench included



Yes


Product dimensions



Net Weight (Product, kg)



2.8 kg


Product Depth



61.4 cm


Product Height



40 cm


Product Width



40 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Depth (max)



61.4 cm
