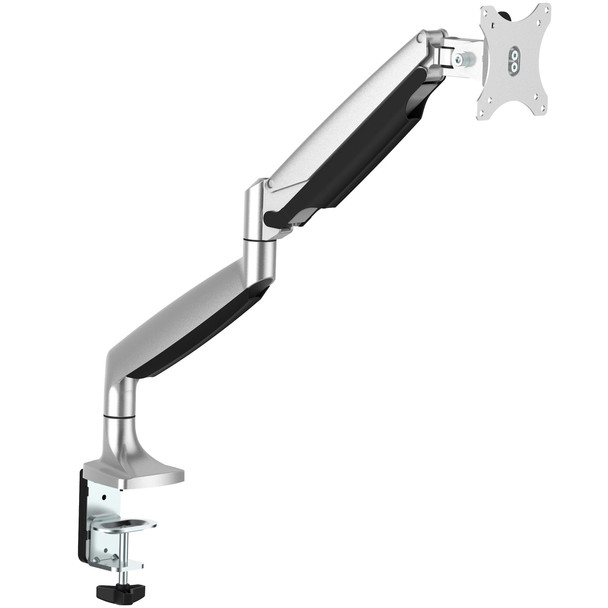

StarTech.com Fully Articulating Desk-Mount Monitor Arm ARMPIVOTHD

VESA Monitor Mount | Single Monitor up to 20lb | ArticulatingFree up space while creating a more comfortable and productive work environment. This desk-mount monitor arm makes it easy to mount your VESA mount (75x75, 100x100) display above your desk or table and adjust the height with one touch for ideal viewing. Its sleek silver finish enhances the aesthetics of your workspace.Mount your Monitor to Save Valuable SpaceThis heavy-duty aluminum monitor arm helps you save space, by securely mounting a computer monitor from 13" to 32" in size and up to 19.9 lb. (9 kg) in weight. It's ideal for many different office applications, such as healthcare or financial settings, shared workspaces, or when you wish to show your display to clients or colleagues.Easy One-Touch Height AdjustmentThe single monitor arm provides one-touch height adjustment, with a gas-spring cylinder that makes it easy to raise or lower your display. Adjust the tension according to the weight of your monitor, so you can re-position the monitor height effortlessly. The monitor mount provides 13.1" (335 mm) of height adjustment.Adjust your Monitor EasilyThe full-motion articulating arm makes it easy to find the right viewing angle. Swivel your monitor 180 degrees to share your display. The articulating arm also supports 180-degree rotation, for landscape or portrait orientation. For comfortable viewing, tilt your screen +90 to -90 degrees.Durable Construction and Easy InstallationMade of aluminum, the single monitor mount requires minimal assembly and is easy to install with the desk clamp or grommet mount. A detachable VESA mount panel makes it simple to attach or remove your monitor. Built-in cable management helps keep your cables organized.The ARMPIVOTHD is backed by a StarTech.com 5-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


LARGE MONITOR MOUNT: VESA 75x75mm/100x100mm compatible heavy-duty monitor arm for a single large 32" (16:9) or 43" (32:9/ultrawide) display up to 19.9lb/9kg; Full motion articulation & silver finish


WIDE RANGE OF MOTION: Articulating ergonomic monitor arm increases comfort & productivity w/ +/-90 tilt, +/-90 swivel, 90 rotating screen (landscape/portrait), & 360 rotating computer monitor arm


ONE-TOUCH ADJUSTMENT: Max height of 19.9" from the desk, the spring-assisted LCD monitor arm offers toolless height adjustable range of 13.2" and can extend outwards up to 23.8" away from base


EASY INSTALLATION: C-clamp or grommet mount by hand to a desk (10 mm to 80 mm); detachable VESA plate w/ quick release clip makes mounting displays easy; tools incl. to adjust articulation tension


SMALL FOOTPRINT: Aluminum desk mount monitor arm w/ space-saving design enhances the work area & cable management channels keep cables organized & hold incl. tool for articulation tension adjustment



Mounting


Mounting

Clamp


Desk thickness (max)

8.5 cm


Minimum screen size

33 cm (13")


Panel mounting interface

75 x 75,100 x 100 mm


Desk thickness (min)

1 cm


Maximum weight capacity

9 kg


Mounting type

Desk


Maximum screen size

81.3 cm (32")


Maximum VESA mount
0 x 100 mm


Number of displays supported

1


Minimum VESA mount

75 x 75 mm



Design


Product colour

Silver


Certification

REACH, CE



Weight & dimensions


Package height
3 mm


Package depth

495 mm


Package width

320 mm


Package weight

4.46 kg


Height

529 mm


Width

284 mm


Depth

96 mm


Weight

3.1 kg



Ergonomics


Height adjustment

Yes


Swivel angle
0°


Height adjustment range
0 - 505 mm


Rubber feet

Yes


Cable management

Yes


Angle of rotation
0°


Tilt angle range

-90 - 90°



Packaging content


Wrench included

Yes


Clamp included

Yes


Number of washers included

4


Wrench type

Hexagonal wrench


Manual

Yes


Number of spacers included

4


Number of screws



Screws included

Yes



Logistics data


Master (outer) case width

328 mm


Master (outer) case height

479 mm


Products per master (outer) case

4 pc(s)


Master (outer) case length

513 mm


Harmonized System (HS) code

85299097



Technical details


Sustainability certificates

RoHS
