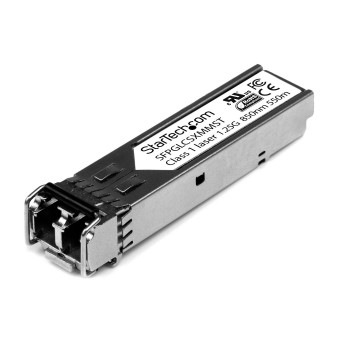

StarTech.com Gigabit Fiber SFP Transceiver Module 1000Base-SX 550m SFPGLCSXMMST

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco� brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:� Wavelength: 850 nm� Maximum Data Transfer Rate: 1.25 Gbps� Type: Multi Mode Fiber� Connection Type: LC Connector� Maximum Transfer Distance: 550 m (1804 ft)� MTBF: 3,381,761 hours� Power Consumption: Less than 1 Watt� Digital Diagnostics Monitoring (DDM): NoThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Features


100% CISCO GLC-SX-MM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others


TECHNICAL SPECS: 1000BASE-SX / 1 Gbps / Multi Mode (MMF) / LC Connector / 850nm / Distances up to 550m (1804ft)


TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches


WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules


THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.



Weight & dimensions


Height

10 mm


Width

12 mm


Depth

60 mm


Weight

16 g



Logistics data


Master (outer) case width

260 mm


Master (outer) case height

205 mm


Products per master (outer) case

36 pc(s)


Master (outer) case length

305 mm


Harmonized System (HS) code

85369010



Technical details


Sustainability certificates

RoHS



Features


Mean time between failures (MTBF)

3381761 h


Product colour

Silver


Hot-swap

Yes


Brand compatibility

Cisco


Compatible products

GLC-SX-MM


Certification

CE, FCC, UL, REACH



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

30 - 70


Storage temperature (T-T)

-40 - 85 �C



Performance


Networking standards

IEEE 802.3z


SFP transceiver standard

SX


Digital Diagnostics Monitoring (DDM)

No


Duplex system

Full, Half


SFP transceiver type

Fiber optic


Maximum data transfer rate

1250 Mbit/s


Interface type

SFP


Fiber optic connector

LC


Maximum transfer distance

550 m


Wavelength

850 nm


Multi-mode fiber (MMF) supported

Yes


Wavelength-division multiplexing (WDM)

No



Power


Power consumption (typical)

1 W



Packaging data


Number of products included

1 pc(s)


Package height

32 mm


Package depth

118 mm


Package width

95 mm


Package weight

95 g
