Startech

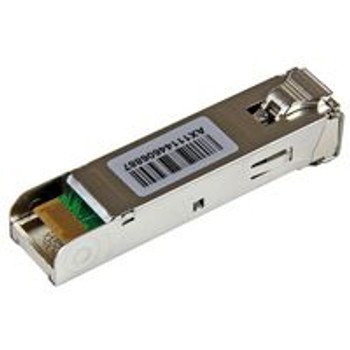

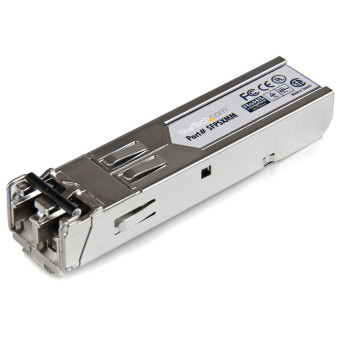

StarTech.com Gigabit Fiber SFP Transceiver Module 1000Base-SX MM LC MSA Complian SFPSXMM
- UPC:
- 65030834940
- MPN:
- SFPSXMM
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime WarrantyThe SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 78,286 hours Power Consumption: Less than 1 Watt DDM: NoThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Features
0% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 1GbE connectivity
TECHNICAL SPECS: 1000BASE-SX / 1Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 550m (1804ft)
TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Weight & dimensions
Height
9 mm
Width
mm
Depth
55 mm
Weight
g
Logistics data
Master (outer) case width
220 mm
Master (outer) case height
210 mm
Products per master (outer) case
0 pc(s)
Master (outer) case length
560 mm
Harmonized System (HS) code
85369010
Technical details
Sustainability certificates
RoHS
Other features
Dimensions (WxDxH)
x 55 x 9 mm
Features
Mean time between failures (MTBF)
78286 h
Product colour
Silver
Hot-swap
Yes
Brand compatibility
MSA Compliant
Certification
CE, FCC, UL, TAA, REACH
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95
Storage temperature (T-T)
-40 - 85 °C
Performance
Networking standards
IEEE 802.3z
SFP transceiver standard
SX
Digital Diagnostics Monitoring (DDM)
No
Duplex system
Full
SFP transceiver type
Fiber optic
Maximum data transfer rate
50 Mbit/s
Interface type
SFP
Fiber optic connector
LC
Fiber ethernet cabling technology
00BASE
Maximum transfer distance
550 m
Wavelength
850 nm
Multi-mode fiber (MMF) supported
Yes
Power
Power consumption (typical)
1 W
Packaging data
Number of products included
1 pc(s)
Package height
65 mm
Package depth
5 mm
Package width
25 mm
Package weight
40 g
