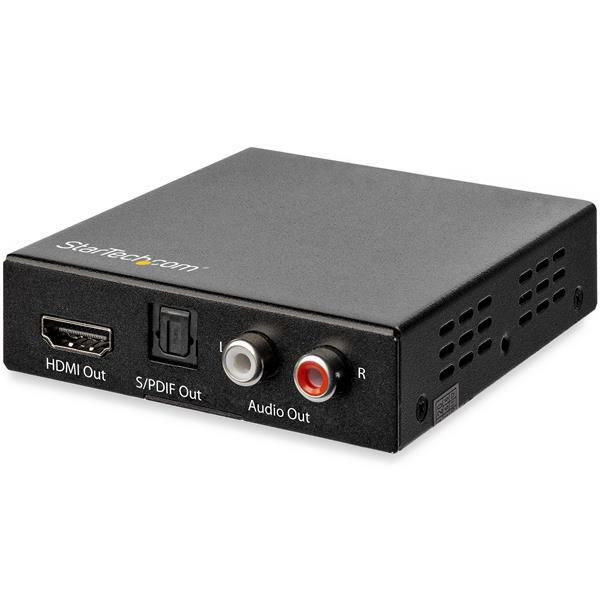

StarTech.com HD202A 4K Hdmi Audio Extractor With HD202A
- UPC:
- 0065030878609
- MPN:
- HD202A
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
HDMI Audio De-embedder | HDR | Toslink Optical Audio | Dual RCA Audio | HDMI Audio
This 4K HDMI audio extractor lets you de-embed the audio from your HDMI video streams to create a distinct audio output that you can connect directly to a digital or analog audio device. Supporting HDMI 2.0 specifications, the de-embedder maintains 4K 60Hz resolutions to deliver a seamless video experience.
4K Video Performance
The HDMI sound splitter supports video resolutions up to 4K 60Hz (3840 x 2160) and high video bandwidth up to 18Gbps. It also supports High Dynamic Range (HDR) video pass-through, letting you enjoy lifelike images with incredible contrast, brightness and color, and greater luminosity compared to standard digital imaging.
Maximum Compatibility
Easily integrate HDMI 2.0 devices, such as your new 4K Blu-ray player, with your existing audio equipment or desktop speakers. The extractor isolates and extracts the audio signal from your HDMI cable and lets you output to digital optical audio or dual RCA audio devices . The integrated EDID management capabilities support 2-channel, 5.1-channel and pass-through audio modes.\
The HDCP compliant HDMI audio de-embedder is compatible with dual-RCA composite adapters, giving you the flexibility to integrate the audio from your HDMI source into 3.5 mm audio applications using MU6MMRCA, MU3MMRCA or MUFMRCA (sold separately).
The compact extractor features a small footprint that blends discreetly into your hardware setup, for a uniform look.
HD202A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Separate and send the audio from a 4K HDMI video signal to dedicated audio devices
- Supports the latest HDMI 2.0 specifications and HDR video pass-through
- Hassle-free connection with digital optical audio or Dual RCA audio devices
Audio
Audio output channels
5.1 channels
Features
Product colour
Black
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 45 �C
Storage temperature (T-T)
-20 - 70 �C
Package dimensions
Depth (package,cm)
19.2 cm
Gross Weight (Package, kg)
0.42 kg
Height (package,cm)
5 cm
Width (package,cm)
15.2 cm
Packaging data
AC adapter included
Yes
Included power plug types
ANZ, EU, NA, UK
Mounting bracket(s) included
Yes
Number of screws
2
Screws included
Yes
Ports & interfaces
Audio output
RCA + Toslink
Host interface
HDMI
Video in
HDMI
Video out
HDMI
Power
External power adapter
Yes
Input current
0.4 A
Input voltage
100 - 240 V
Operating current
1 A
Operating voltage
5 V
Power plug type
Type M
Product dimensions
Net Weight (Product, kg)
0.32 kg
Product Depth
9 cm
Product Height
2.2 cm
Product Width
8 cm
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
Video
Maximum refresh rate
60 Hz
Maximum video resolution
4096 x 2160 Pixels
Video resolutions
1280 x 720, 1920 x 1080, 1920 x 1200, 3840 x 2160, 4096 x 2160
