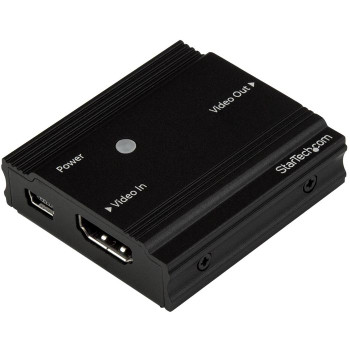

StarTech.com HDBOOST4K2 45 Ft. 14 M Hdmi Signal HDBOOST4K2

HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.Cable lengthfrom sourceCable lengthto displayTotal cable lengthMaximumresolution82 ft. (25 m)82 ft. (25 m)164 ft. (50 m)1080p (60 Hz) - 1920x108065 ft. (20 m)65 ft. (20 m)130 ft. (40 m)4K (30 Hz) - 3840x216022.5 ft. (7 m)22.5 ft. (7 m)45 ft. (14 m)4K (60 Hz) - 3840x2160Maintains Ultra HD 4K VideoWhen you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.Hassle-Free InstallationWith its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.Supports Several DistancesSupport for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.The StarTech.com Advantage

Features



Audio output channels



7.1 channels


Bandwidth



18 Gbit/s


Certification



REACH, CE, FCC


Daisy chain



No


HDCP



Yes


HDCP version



2.2


Material



Plastic


Maximum refresh rate



60 Hz


Maximum resolution



3840 x 2160 Pixels


Maximum transfer distance



14 m


Product colour



Black


Rack mounting



No


Type



AV repeater


Logistics data



Master (outer) case height



34 cm


Master (outer) case length



55 cm


Master (outer) case width



53 cm


Products per master (outer) case



100 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 70 °C


Storage temperature (T-T)



-10 - 80 °C


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.59 kg


Height (package,cm)



3 cm


Width (package,cm)



14 cm


Packaging content



Cables included



USB


Quick start guide



Yes


Ports & interfaces



HDMI in



1


HDMI version



2.0


Number of HDMI outputs



1


USB connector type



Micro-USB B


USB ports quantity



1


Power



Power consumption (typical)



2.5 Watt


USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



2.85 cm


Product Height



1.37 cm


Product Width



5.2 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
