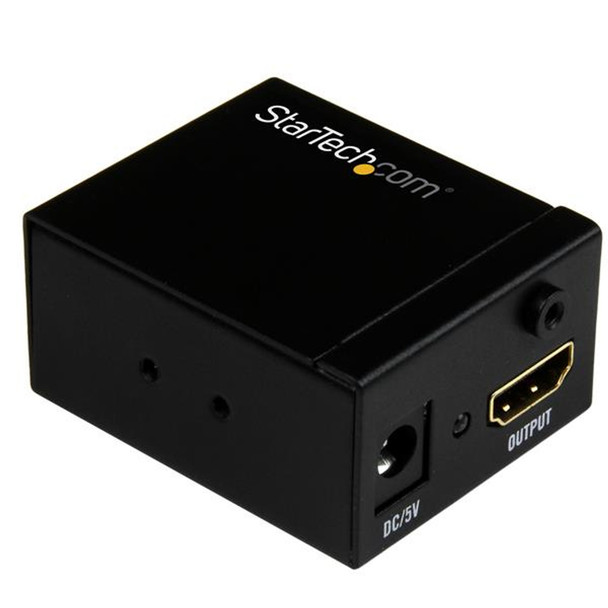

StarTech.com HDMI Signal Booster - 35m 115 feet - 1080p HDBOOST

This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.

Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don't need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.

Compatible with varying distances
The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.

Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you'll still be able to depend on high-definition resolutions up to 1080p at 60Hz.

The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Features


Discreet installation with a small form factor and no external power adaptor


Works at varying distances up to 115 ft. with a built-in equalization switch


Maintain high-definition resolutions up to 1080p


Supports 7.1 surround sound audio


Mounting Hardware Included



Weight & dimensions


Weight

72 g


Dimensions (WxDxH)

42.2 x 54.2 x 26.2 mm



Packaging content


Mounting brackets included

Yes



Logistics data


Harmonized System (HS) code

85176200



Technical details


Audio support

Yes


Sustainability certificates

RoHS



Features


Audio system

Multichannel


Type

AV repeater


Maximum resolution

1920 x 1080 pixels


Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)


Product colour

Black


Rack mounting

Yes


Maximum transfer distance

35 m


Certification

CE, FCC


Audio output channels

7.1 channels


LED indicators

Power


Supported video modes

720p, 1080p



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-10 - 80 �C



Ports & interfaces


HDMI in

1


DC-in jack

Yes


Number of HDMI outputs

1



Power


AC input voltage

100-240 V


Power plug type

Type N


Operating voltage

5 V


Output current

1 A



Packaging data


Package height

33 mm


Package depth

144 mm


Package width

173 mm


Package weight

163 g


Package dimensions (WxDxH)

143 x 168 x 63 mm
