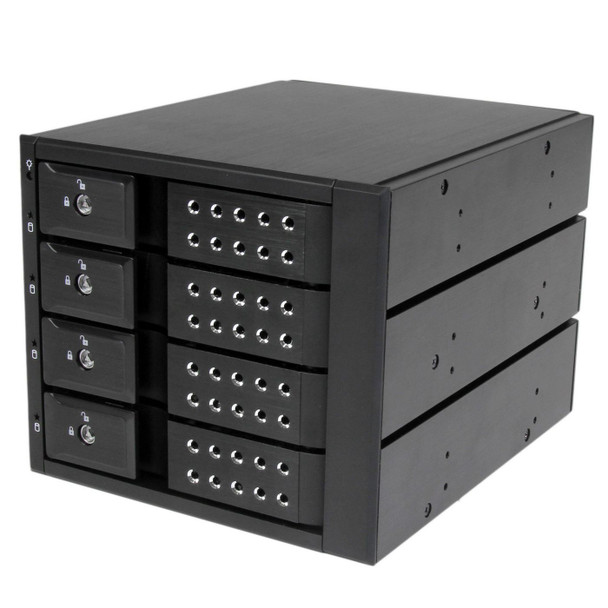

StarTech.com HSB4SATSASBA 4 BAY 3.5IN SATA / SAS HDD HSB4SATSASBA

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan

Features



Certification



CE, FCC


Data transfer rate



6 Gbit/s


Fan diameter



7 cm


Hot-swap



Yes


Key lock



Yes


LED indicators



Activity, Power


Material



Aluminium


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case height



28.1 cm


Master (outer) case length



51.6 cm


Master (outer) case width



38.5 cm


Products per master (outer) case



6 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-20 - 65 °C


Package dimensions



Depth (package,cm)



16.4 cm


Gross Weight (Package, kg)



1 kg


Height (package,cm)



18 cm


Width (package,cm)



25.4 cm


Packaging content



Cables included



SATA


Manual



Yes


Screws included



Yes


Ports & interfaces



External SATA ports quantity



4


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



19.7 cm


Product Height



12.4 cm


Product Width



14.5 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
