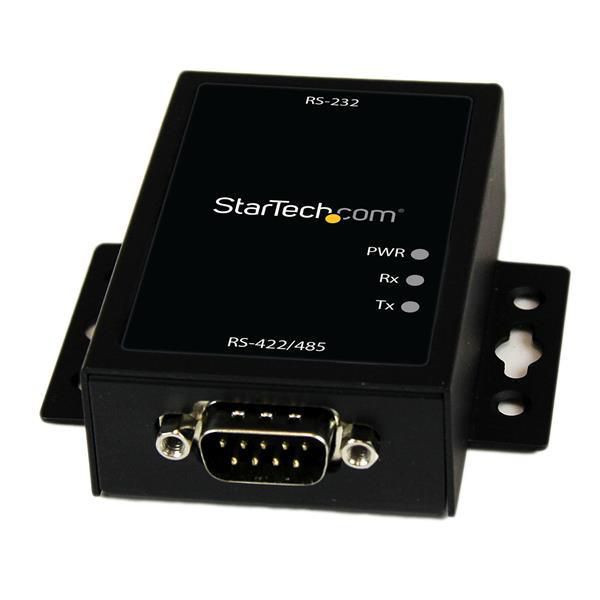

StarTech.com IC232485S RS232 TO RS422/485 CONVERTER IC232485S

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure

Certificates



Certification



CE, FCC, REACH


Material



Housing material



Steel


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



14.6 cm


Gross Weight (Package, kg)



0.351 kg


Height (package,cm)



4.1 cm


Width (package,cm)



20.8 cm


Packaging data



Manual



Yes


Power



Input current



0.3 A


Input voltage



110 - 240 V


Product dimensions



Net Weight (Product, kg)



0.09 kg


Product Depth



11.7 cm


Product Height



2.2 cm


Product Width



5.9 cm


Technical details



Connector 1



DB-9


Connector 2



DB-9


Connector gender



Male/Female


Host interface



RS-232


Maximum cable length



1200 m


Output interface



RS-232


Product colour



Black


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
