Startech.Com

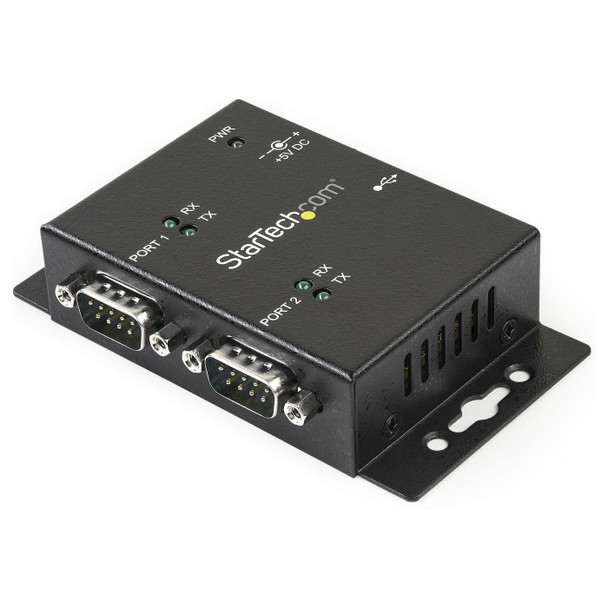

StarTech.com ICUSB2322I 2X USB TO SERIAL ADAPTER HUB ICUSB2322I
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- ICUSB2322I
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Certification
RoHS compliance
Yes
Features
Certification
CE, FCC, TAA, REACH
Housing material
Steel
LED indicators
Activity
Product colour
Black
Logistics data
Harmonized System (HS) code
84719000
Master (outer) case height
36.4 cm
Master (outer) case length
52.5 cm
Master (outer) case width
44.4 cm
Products per master (outer) case
45 pc(s)
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 55 �C
Relative humidity
5 - 95 %
Storage temperature (T-T)
-20 - 85 �C
Other features
Chipset
FTDI - FT232RL
Package dimensions
Depth (package,cm)
21.4 cm
Gross Weight (Package, kg)
0.36 kg
Height (package,cm)
4.1 cm
Width (package,cm)
14.5 cm
Packaging content
Cables included
USB
DIN rail kit included
Yes
Drivers included
Yes
Manual
Yes
Quantity per pack
1 pc(s)
Packaging data
Quantity per pack
1 pc(s)
Performance
Baud rate
921.6 Kbit/s
Certification
CE, FCC
Chipset
FTDI - FT232RL
Compatible operating systems
- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10\n- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016\n- Mac OS 10.6 to 10.12\n- Linux 2.4.x to 4.4.x LTS
Data bits
7, 8
FIFO (First In, First Out)
256 B
Harmonized System (HS) code
84719000
Housing material
Steel
LED indicators
Activity
Parity bit
Even, Mark, N, No, Odd, Space
Product colour
Black
RoHS compliance
Yes
Stop bits
1, 2
Ports & interfaces
Connector 1
2 x DB-9
Connector 2
USB 2.0 B
Connector gender
Male/Female
Host interface
USB 2.0 Type-B
Hub interfaces
Serial
Ports quantity
2
RS-232 ports
2
Power
USB powered
Yes
Product dimensions
Net Weight (Product, kg)
0.09 kg
Product Depth
10.4 cm
Product Height
2.4 cm
Product Width
6.6 cm
Sustainability
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
System requirements
Compatible operating systems
Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Linux operating systems supported
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported
Windows XP Embedded
Windows operating systems supported
Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
View AllClose
The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Certification
RoHS compliance
Yes
Features
Certification
CE, FCC, TAA, REACH
Housing material
Steel
LED indicators
Activity
Product colour
Black
Logistics data
Harmonized System (HS) code
84719000
Master (outer) case height
36.4 cm
Master (outer) case length
52.5 cm
Master (outer) case width
44.4 cm
Products per master (outer) case
45 pc(s)
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
0 - 55 �C
Relative humidity
5 - 95 %
Storage temperature (T-T)
-20 - 85 �C
Other features
Chipset
FTDI - FT232RL
Package dimensions
Depth (package,cm)
21.4 cm
Gross Weight (Package, kg)
0.36 kg
Height (package,cm)
4.1 cm
Width (package,cm)
14.5 cm
Packaging content
Cables included
USB
DIN rail kit included
Yes
Drivers included
Yes
Manual
Yes
Quantity per pack
1 pc(s)
Packaging data
Quantity per pack
1 pc(s)
Performance
Baud rate
921.6 Kbit/s
Certification
CE, FCC
Chipset
FTDI - FT232RL
Compatible operating systems
- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10\n- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016\n- Mac OS 10.6 to 10.12\n- Linux 2.4.x to 4.4.x LTS
Data bits
7, 8
FIFO (First In, First Out)
256 B
Harmonized System (HS) code
84719000
Housing material
Steel
LED indicators
Activity
Parity bit
Even, Mark, N, No, Odd, Space
Product colour
Black
RoHS compliance
Yes
Stop bits
1, 2
Ports & interfaces
Connector 1
2 x DB-9
Connector 2
USB 2.0 B
Connector gender
Male/Female
Host interface
USB 2.0 Type-B
Hub interfaces
Serial
Ports quantity
2
RS-232 ports
2
Power
USB powered
Yes
Product dimensions
Net Weight (Product, kg)
0.09 kg
Product Depth
10.4 cm
Product Height
2.4 cm
Product Width
6.6 cm
Sustainability
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
System requirements
Compatible operating systems
Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Linux operating systems supported
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported
Windows XP Embedded
Windows operating systems supported
Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
