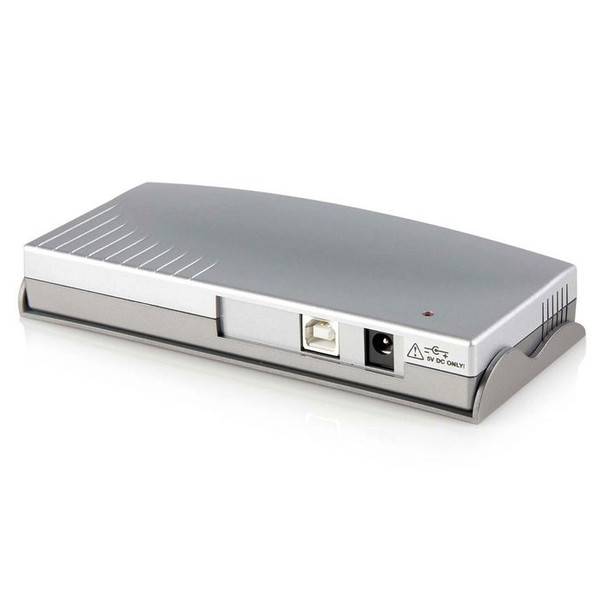

StarTech.com ICUSB2328 8 PORT USB TO SERIAL HUB ICUSB2328

Add eight RS232 serial ports to any notebook or desktop computer using a single USB port

The ICUSB2328 8 Port USB to Serial RS232 DB9 Adapter Hub lets you connect up to eight RS232 serial devices to your Mac or PC, laptop or desktop computer through a single USB port, as though the computer offered integrated DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter or wall outlet - a cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Provides serial connectivity to systems lacking RS-232 serial ports in a convenient external hub form factor
- Easy plug and play installation with our USB Bus-powered adapter � requires no external power adapter or wall outlet

Features



Certification



CE, FCC


Housing material



Plastic


Plug and Play



Yes


Product colour



Silver


Logistics data



Harmonized System (HS) code



84719000


Master (outer) case height



42.6 cm


Master (outer) case length



52 cm


Master (outer) case width



60 cm


Products per master (outer) case



20 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-20 - 85 �C


Other features



Chipset



FTDI - FT232RL


Package dimensions



Depth (package,cm)



28.5 cm


Gross Weight (Package, kg)



0.9 kg


Height (package,cm)



5.2 cm


Width (package,cm)



15.9 cm


Packaging content



Cables included



Serial, USB


Drivers included



Yes


Manual



Yes


Performance



Baud rate



921.6 Kbit/s


Data bits



7, 8


FIFO (First In, First Out)



256 B


Harmonized System (HS) code



84719000


Ports & interfaces



DC-in jack



Yes


Host interface



USB 2.0 Type-B


Hub interfaces



Serial


Ports quantity



8


RS-232 ports



8


Power



Output current



1 A


Output voltage



5 V


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.85 kg


Product Depth



15 cm


Product Height



2.6 cm


Product Width



6.65 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98SE, Windows CE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
