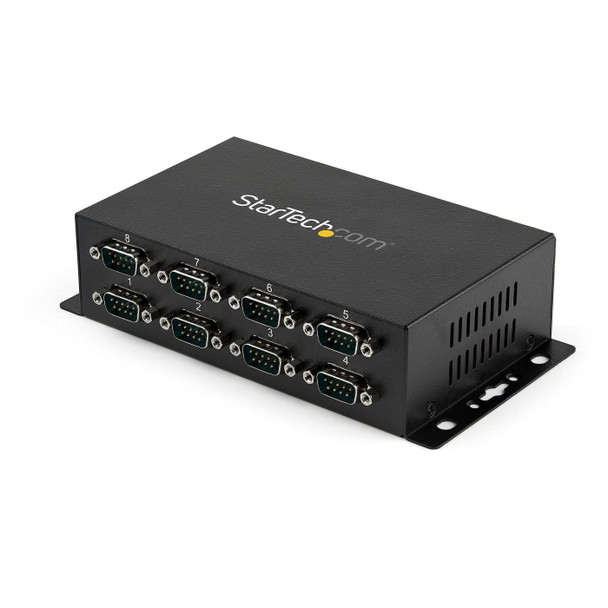

StarTech.com ICUSB2328I 8 PORT USB SERIAL ADAPTER ICUSB2328I

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required

Features



Housing material



St�l


LED indicators



Activity


Product colour



Black


Logistics data



Harmonized System (HS) code



84719000


Master (outer) case height



32 cm


Master (outer) case length



51 cm


Master (outer) case width



40.5 cm


Products per master (outer) case



14 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-20 - 85 �C


Other features



Chipset



FTDI - FT232RL


Package dimensions



Depth (package,cm)



30.2 cm


Gross Weight (Package, kg)



0.875 kg


Height (package,cm)



7.2 cm


Width (package,cm)



19.6 cm


Packaging content



Cables included



USB


DIN rail kit included



Yes


Drivers included



Yes


Manual



Yes


Performance



Baud rate



921.6 Kbit/s


Data bits



7, 8


FIFO (First In, First Out)



4048 B


Harmonized System (HS) code



84719000


Mean time between failures (MTBF)



146300 Hour


Parity bit



Even, Mark, N, No, Odd, Space


Stop bits



1, 2


Ports & interfaces



Card reader integrated



No


Host interface



USB 2.0 Type-B


Hub interfaces



Serial


Ports quantity



8


RS-232 ports



8


Power



Input current



0.25 A


Input voltage



5 V


Power plug type



Type M


USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.22 kg


Product Depth



18 cm


Product Height



4.32 cm


Product Width



10 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Other operating systems supported



Windows XP Embedded


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
