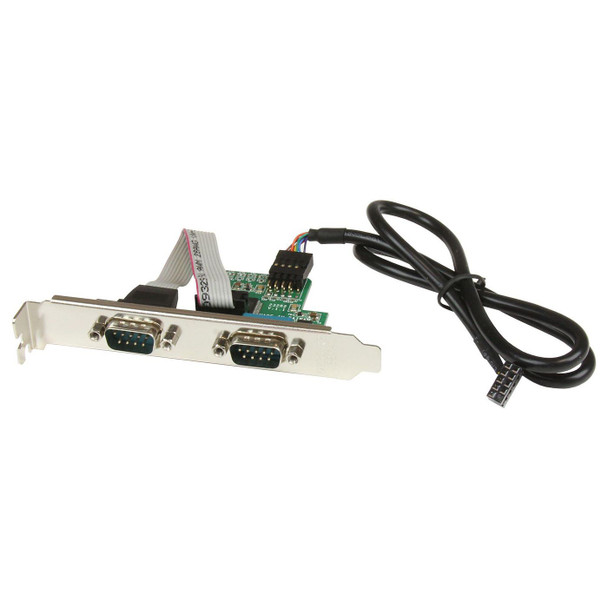

StarTech.com ICUSB232INT2 USB HEADER TO SERIAL ADAPTER ICUSB232INT2

The ICUSB232INT2 USB to Serial Adapter lets you add 2 RS232 ports to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Direct connection from the motherboard header allows for a clean and completely contained setup without taking up a PCI/PCI-Express slot in your system
- Standard and low profile/half-height bracket included to ensure fitment in any system
- Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation

Design



Certification



Microsoft WHQL, CE, FCC


Internal



Yes


Features



Baud rate



115.2 Kbit/s


Data bits



7, 8


FIFO (First In, First Out)



256 B


Plug and Play



Yes


Stop bits



1, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



32 cm


Master (outer) case length



68.4 cm


Master (outer) case width



35.4 cm


Products per master (outer) case



50 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



-10 - 80 �C


Storage temperature (T-T)



-20 - 100 �C


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.153 kg


Height (package,cm)



3.2 cm


Width (package,cm)



14.4 cm


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Ports & interfaces



Host interface



IDC


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.04 kg


Product Depth



6.8 cm


Product Height



1.9 cm


Product Width



12 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
