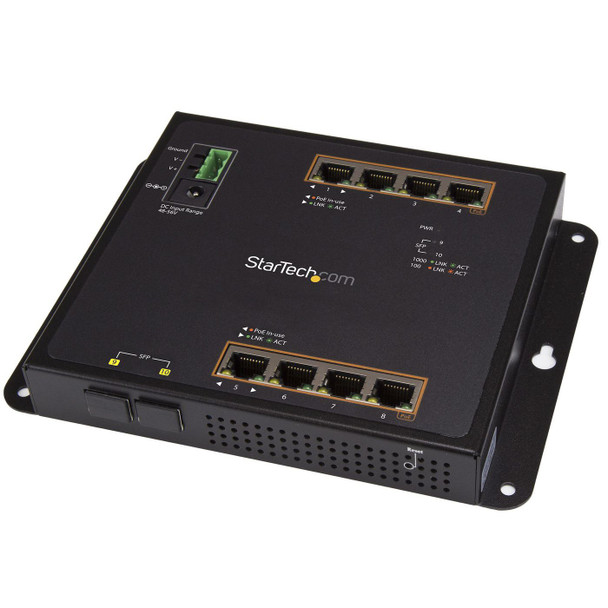

StarTech.com IES101GP2SFW ETHERNET SWITCH 8-PORT POE+ IES101GP2SFW

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Data transmission



Store-and-forward



Yes


Design



Certification



CE, FCC, RoHS


Housing material



Steel


International Protection (IP) code



IP30


LED indicators



Activity, Link


Product colour



Black


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



47 cm


Master (outer) case length



37 cm


Master (outer) case width



32.5 cm


Products per master (outer) case



10 pc(s)


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Network



10G support



No


Auto MDI/MDI-X



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Spanning tree protocol



Yes


Virtual LAN features



Tagged VLAN


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 °C


Storage temperature (T-T)



-40 - 90 °C


Other features



Terminal block port



Yes


Package dimensions



Depth (package,cm)



30 cm


Gross Weight (Package, kg)



0.9 kg


Height (package,cm)



9 cm


Width (package,cm)



17 cm


Packaging data



Quick start guide



Yes


Terminal block included



Yes


Performance



Buffer size



512 KB


Maximum cable length



100 m


Maximum data transfer rate



2000 Mbit/s


Mean time between failures (MTBF)



100000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


SFP module slots quantity



2


Power



Input current



1 A


Input voltage



12 - 48 V


Power plug type



Type M


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



8


Total Power over Ethernet (PoE) budget



200 Watt


Product dimensions



Net Weight (Product, kg)



0.618 kg


Product Depth



13.4 cm


Product Height



2.5 cm


Product Width



17.8 cm


Security



Access Control List (ACL)



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
