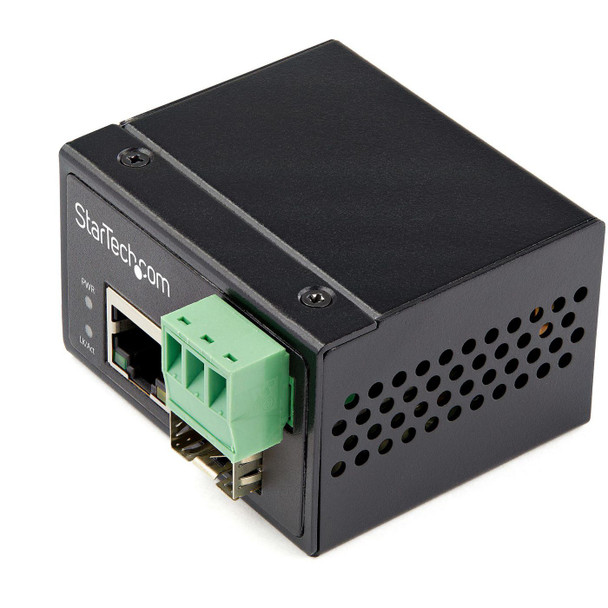

StarTech.com IMC100MSFP Industrial Fiber To Ethernet IMC100MSFP

"10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

An industrial media converter that converts fiber to copper at a network endpoint.

A Flexible Solution Covering Different Requirements

This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50�C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6

Shock: EN 60068-2-27

Free-Fall: EN 60068-2-32

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated"

Design



Certification



CE, FCC


DIN rail mounting



Yes


Housing material



Aluminium


Internal



No


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



22.5 cm


Master (outer) case length



34.5 cm


Master (outer) case width



35.5 cm


Products per master (outer) case



20 pc(s)


Network



Converter input interface



10Base-T, 100Base-TX


Converter output interface



100Base-FX


Duplex system



Full


Jumbo frames



16000


Jumbo frames support



Yes


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



10.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



6.4 cm


Width (package,cm)



15.5 cm


Packaging content



User guide



Yes


Performance



Fiber mode structure



Multi-mode, Single-mode


Mean time between failures (MTBF)



500000 Hour


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



Input voltage



12 - 56 V


Power consumption (typical)



1.92 Watt


Power over Ethernet (PoE)



No


Power plug type



Type N


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



5.9 cm


Product Height



5 cm


Product Width



3.6 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
