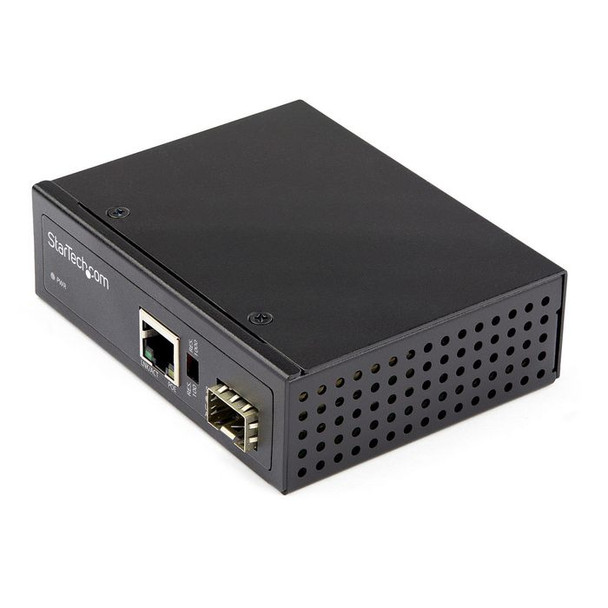

StarTech.com IMC1GSFP60W Poe+ Industrial Fiber To IMC1GSFP60W

Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.

Designed for Harsh Environments

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURE

STORAGE TEMPERATURE

-40�C to 75�C

-40�C to 85�C

-40�F to 167�F

-40�F to 185�F

Up to 60 Watts of Power for Connected Devices

60 watts of available support a wide range of PD devices such as:
Pan-and-Tilt Cameras

Lighting

Cameras

Sensors

WiFi Access Points

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)

Design



DIN rail mounting



Yes


Housing material



Aluminium


Internal



No


International Protection (IP) code



IP30


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



22.5 cm


Master (outer) case length



34.5 cm


Master (outer) case width



35.5 cm


Products per master (outer) case



10 pc(s)


Network



Auto MDI/MDI-X



Yes


Duplex system



Full


Flow control support



Yes


Jumbo frames



16000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Full duplex



Yes


Package dimensions



Depth (package,cm)



16.2 cm


Gross Weight (Package, kg)



0.2 kg


Height (package,cm)



6.4 cm


Width (package,cm)



21.1 cm


Packaging content



Quick installation guide



Yes


Packaging data



Package volume



395 cm�


Performance



Buffer size



512 KB


Fiber mode structure



Multi-mode, Single-mode


Maximum transfer distance



100 m


Mean time between failures (MTBF)



500000 Hour


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



Input voltage



48 - 56 V


Power over Ethernet (PoE)



Yes


Power plug type



Type N


Total Power over Ethernet (PoE) budget



60 Watt


Product dimensions



Net Weight (Product, kg)



0.15 kg


Product Depth



10.4 cm


Product Height



3.2 cm


Product Width



8.15 cm


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
