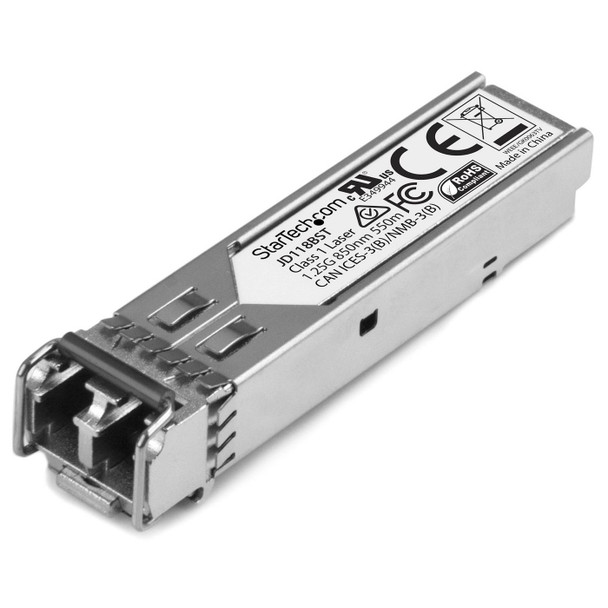

StarTech.com JD118BST HP JD118B COMPATIBLE SFP MM JD118BST

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe JD118BST is an HPE JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE� brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:� Wavelength: 850 nm� Maximum Data Transfer Rate: 1.25 Gbps� Type: Multi Mode Fiber� Connection Type: LC Connector� Maximum Transfer Distance: 550 m (1804 ft)� MTBF: 3,381,761 hours� Power Consumption: Less than 1 Watt� Digital Diagnostics Monitoring (DDM): YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Features



Certification



CE, FCC, UR


Hot-swap



Yes


Housing material



Aluminium


Mean time between failures (MTBF)



3381761 Hour


Product colour



Silver


Logistics data



Harmonized System (HS) code



85369010


Master (outer) case height



20.3 cm


Master (outer) case length



30 cm


Master (outer) case width



25 cm


Products per master (outer) case



36 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



9.3 cm


Gross Weight (Package, kg)



0.046 kg


Height (package,cm)



3.2 cm


Width (package,cm)



11.8 cm


Packaging data



Number of products included



1 pc(s)


Performance



Digital Diagnostics Monitoring (DDM)



Yes


Duplex system



Full


Fiber optic connector



LC


Interface type



SFP


Maximum data transfer rate



1250 Mbit/s


Maximum transfer distance



550 m


Multi-mode fiber (MMF) supported



Yes


Networking standards



IEEE 802.3z


SFP transceiver standard



SX


SFP transceiver type



Fiber optic


Wavelength



850 nm


Power



Power consumption (typical)



1 Watt


Product dimensions



Net Weight (Product, kg)



0.018 kg


Product Depth



5.66 cm


Product Height



1.25 cm


Product Width



1.37 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
