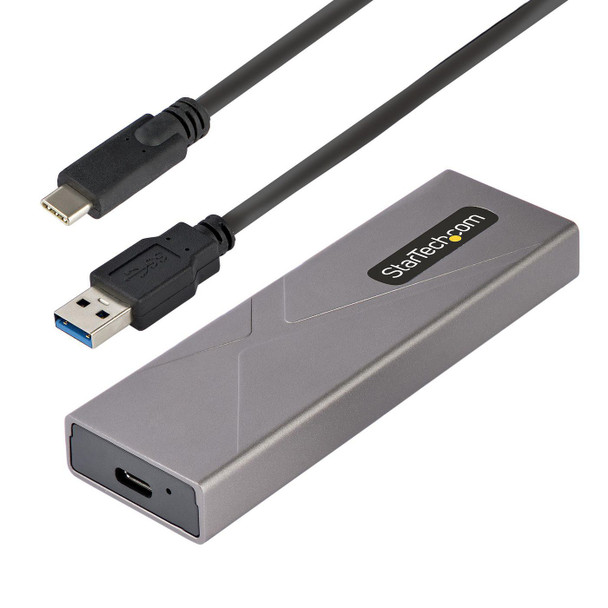

StarTech.com M2-USB-C-NVME-SATA Usb-C 10Gbps To M.2 Nvme Or M2-USB-C-NVME-SATA

Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | Tool-less Drive Installation | USB-C and USB-A Host Cables IncludedTurn your PCIe M.2 NVMe or SATA AHCI M.2 SSD into a highly portable, USB-based external storage solution. This enclosure features USB 3.1 Gen 2 (10Gbps) with UASP support & PCIe 3.0 delivering real read/write data transfer speeds up to 1GB per second. Working with both PCIe and SATA based drives, this enclosure ensures compatibility with many M.2 drives, supporting both M-Key (PCIe) and B+M-Key (SATA) drives sized 2230/2242/2260/2280. The enclosure is also forward compatible with PCIe 4.0 based drives, at reduced PCIe 3.0 performance.USB 3.1 Gen 2 10Gbps (also known as USB 3.2 Gen 2x1) is backward compatible with USB 3.1 Gen 1 5Gbps (also known as USB 3.0), USB 2.0, and USB 1.1.All-in-One M.2 and USB SolutionWith compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA or PCIe NVMe based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure. For further compatibility the enclosure works with multiple drive lengths supporting 2230, 2242, 2260 and 2280mm drives including Samsung (850, 860, 870, 950, 960, 970) Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.For multiplatform support this enclosure, the enclosure features a USB-C host connection, and includes two different 12 in. (30 cm) host cables, a USB-C to USB-C cable and a USB-C to USB-A cable. This combined with the backward compatibility of the USB protocol, ensures that this M.2 enclosure will work with virtually any computer, whether it's USB-A, USB-C or Thunderbolt 3/4.Tool-Free Drive InstallationThe external M2 SATA or M.2 NVMe SSD enclosure case supports driverless plug-and-play installation and features tool-less drive installation, so you can install your drive with no tools required.Unparalleled PerformanceLeverage the high speeds of your M.2 NVMe or SATA drive, with this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5Gbps. The enclosure also supports PCIe 3.0 which when combined with an M.2 NVMe drive takes full advantage of the throughput available to USB 3.2 Gen 2x1.This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage.Durable and PortableThis slim, pocket-sized enclosure for PCIe NVMe or SATA based M.2 drives is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.M2-USB-C-NVME-SATA is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Design



LED indicators



Activity, Power


Material



Aluminium


Product colour



Grey


Product type



SSD enclosure


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case height



41.5 cm


Master (outer) case length



30.5 cm


Master (outer) case width



36.4 cm


Products per master (outer) case



40 pc(s)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-10 - 65 �C


Package dimensions



Depth (package,cm)



14.2 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



2.8 cm


Width (package,cm)



17 cm


Packaging content



Cables included



USB Type-A to USB Type-C, USB Type-C to USB Type-C


Manual



Yes


Performance



Chipset



Realtek - RTL9210B


Data transfer rate



10 Gbit/s


Mean time between failures (MTBF)



112000 Hour


UASP support



Yes


Ports & interfaces



Integrated USB cable



No


USB connectivity



Yes


USB connector gender



Female


USB connector type



USB Type-C


USB ports quantity



1


USB version



3.2 Gen 2 (3.1 Gen 2)


Power



Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



10.6 cm


Product Height



1.4 cm


Product Width



3.5 cm


Storage



Number of storage drives supported



1


Storage drive size



M.2 "


Supported storage drive interfaces



M.2


Supported storage drive lengths



30, 42, 60, 80


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.3 m
