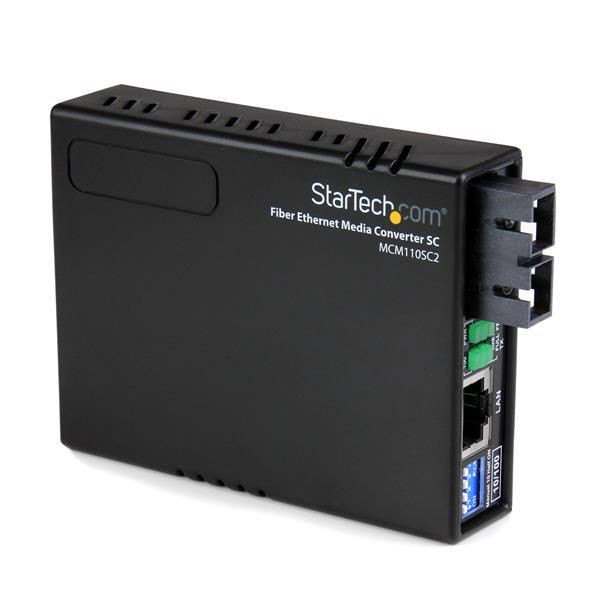

StarTech.com MCM110SC2EU FIBER ETHERNET MEDIA CONVERTER MCM110SC2EU

The MCM110SC2EU 10/100 Multi Mode Fiber Ethernet Media Converter (SC, 2 km) creates a cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals, to extend an Ethernet network connection over an SC-terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM�, Cisco�, Lucent� and Nortel� networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

Design



Certification



CE, FCC


Housing material



Plastic


Internal



No


LED indicators



Activity, Link, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Converter input interface



100BASE-FX, 100Base-TX, 10Base-T


Duplex system



Full, Half


Ethernet LAN data rates



10, 100


Flow control support



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.3 kg


Height (package,cm)



6.5 cm


Width (package,cm)



14.5 cm


Packaging content



AC adapter included



Yes


Manual



Yes


Performance



Fiber mode structure



Multi-mode


Maximum transfer distance



2000 m


Mean time between failures (MTBF)



65000 Hour


Wavelength



1310 nm


Wavelength-division multiplexing (WDM)



No


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



1


Power



Input voltage



230 V


Output current



0.2 A


Output voltage



12 V


Power over Ethernet (PoE)



No


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.07 kg


Product Depth



9.5 cm


Product Height



2 cm


Product Width



7.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
