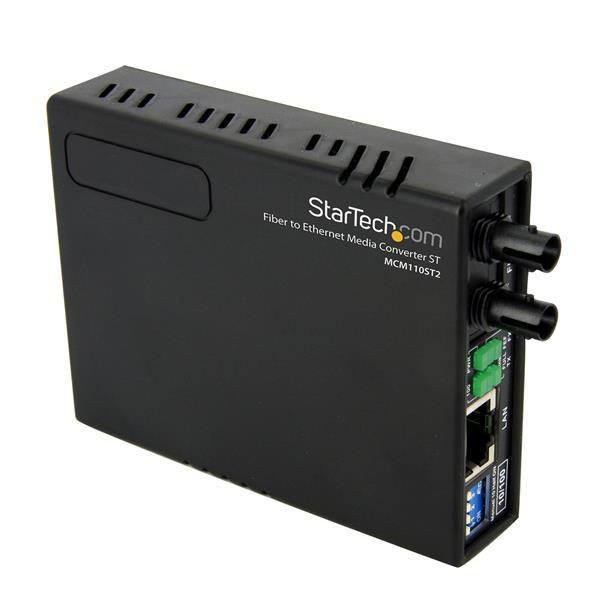

StarTech.com MCM110ST2EU MM FIBER MEDIA CONVERTER ST MCM110ST2EU

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2EU 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

Logistics data



Harmonized System (HS) code



85176990


Network



Duplex system



Full, Half


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 50 °C


Storage temperature (T-T)



-10 - 70 °C


Other features



Cable type



Fiber optic


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.3 kg


Height (package,cm)



6.5 cm


Width (package,cm)



14.5 cm


Performance



Maximum transfer distance



2000 m


Wavelength



1310 nm


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Fiber optic connector



ST


Power



Input voltage



240 V


Output current



0.2 A


Product dimensions



Net Weight (Product, kg)



0.07 kg


Product Depth



9.5 cm


Product Height



2 cm


Product Width



7.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
