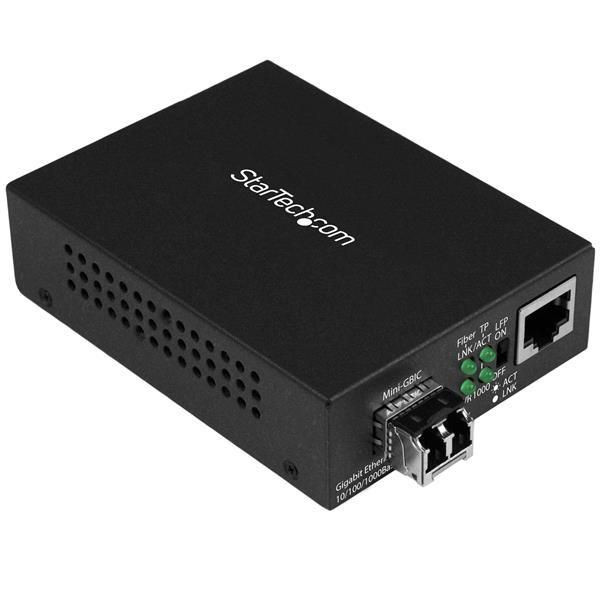

StarTech.com MCM1110MMLC FIBER MEDIA CONVERTER - W/ SFP MCM1110MMLC

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation

Design



Certification



CE, FCC, REACH, TAA


Housing material



Steel


Internal



No


LED indicators



Activity, Link, Power


Product colour



Black


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Converter input interface



1000Base-T, 100Base-TX, 10Base-T


Converter output interface



1000Base-LX, 1000Base-SX


Data transfer rate



1000 Mbit/s


Duplex system



Full


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



28.9 cm


Gross Weight (Package, kg)



0.545 kg


Height (package,cm)



7.2 cm


Width (package,cm)



13.8 cm


Packaging content



Manual



Yes


Performance



Fiber mode structure



Multi-mode


Maximum transfer distance



550 m


Mean time between failures (MTBF)



50000 Hour


Wavelength



850 nm


Wavelength-division multiplexing (WDM)



No


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



LC


Fiber ports quantity



1


Power



External power adapter



Yes


Input current



1 A


Input voltage



100 - 240 V


Output current



2 A


Output voltage



5 V


Power over Ethernet (PoE)



No


Power plug type



Type N


Product dimensions



Net Weight (Product, kg)



0.13 kg


Product Depth



9.4 cm


Product Height



2.6 cm


Product Width



7 cm


Technical details



Harmonized System (HS) code



85176990


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
