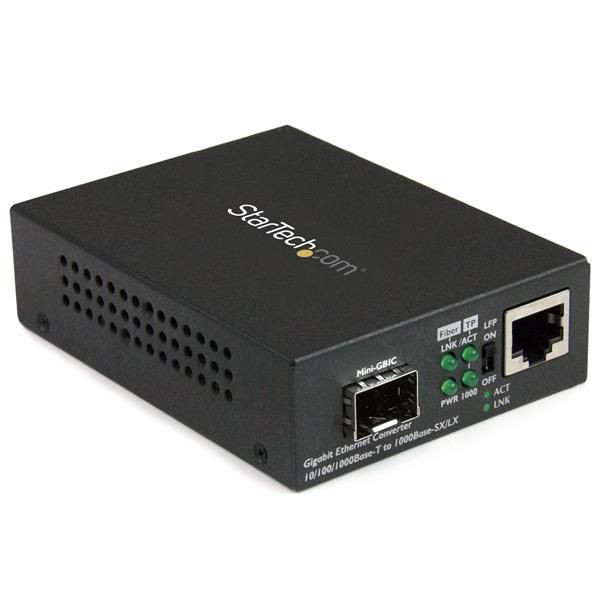

StarTech.com MCM1110SFP FIBER MEDIA CONVERTER - OPEN MCM1110SFP

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network

Design



Certification



CE, FCC


Housing material



Steel


Internal



No


LED indicators



Activity, Link, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Converter input interface



1000Base-T, 100Base-TX, 10Base-T


Converter output interface



1000Base-LX, 1000Base-SX


Duplex system



Full


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



13.9 cm


Gross Weight (Package, kg)



0.544 kg


Height (package,cm)



6.8 cm


Width (package,cm)



28.4 cm


Packaging content



Manual



Yes


Performance



Fiber mode structure



Multi-mode, Single-mode


Mean time between failures (MTBF)



50000 Hour


Wavelength-division multiplexing (WDM)



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power



External power adapter



Yes


Input current



1 A


Input voltage



100 - 240 V


Output current



2 A


Output voltage



5 V


Power consumption (typical)



5 Watt


Power over Ethernet (PoE)



No


Power plug type



Type N


Product dimensions



Net Weight (Product, kg)



0.12 kg


Product Depth



9.5 cm


Product Height



2.6 cm


Product Width



7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
